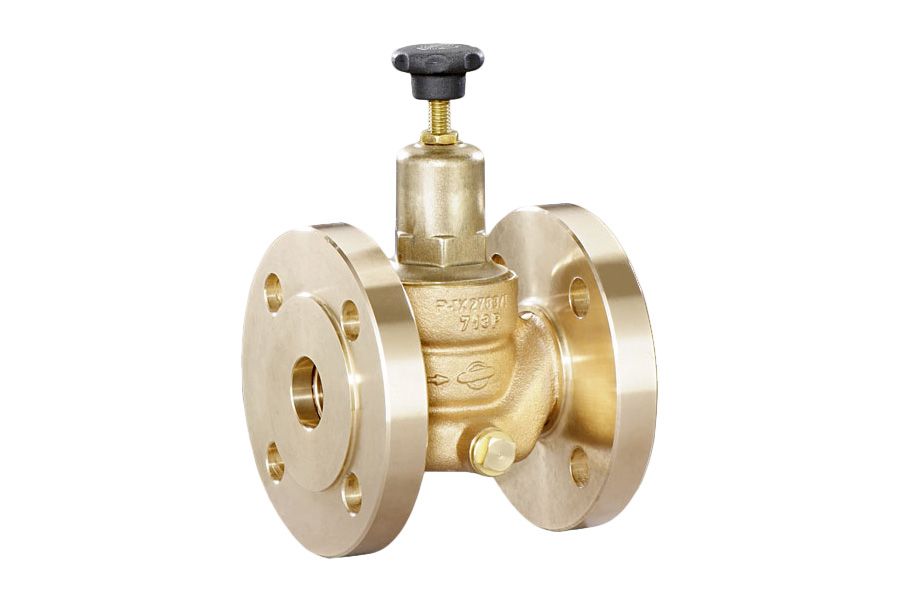

Flanged Pressure Reducing Valve, 05-050-DRV572
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN25 |
|---|---|
| Material Body | Gunmetal |
| Inner Parts | Brass |
| Seat Sealing | NBR |
| Temperature Range | 0°C to 75°C |
- balanced single seat diaphragm valve
- for neutral gases and liquids
- strainer material stainless steel
- interchangeable internal parts
- min. pressure difference 1 bar
- both sides pressure gauge connection G 1/4
- inl. press. max. 25 bar
- outlet pressure 0,5-4 bar
| Art. Nr. | DN | PN | kg |
| 05-050-DRV572-15 | DN15 | PN25 | 2.37 |
| 05-050-DRV572-20 | DN20 | PN25 | 3.13 |
| 05-050-DRV572-25 | DN25 | PN25 | 4.12 |
| 05-050-DRV572-32 | DN32 | PN25 | 6.02 |
| 05-050-DRV572-40 | DN40 | PN25 | 8.64 |
| 05-050-DRV572-50 | DN50 | PN25 | 11.30 |
| 05-050-DRV572-65 | DN65 | PN25 | 13.45 |
| 05-050-DRV572-80 | DN80 | PN25 | 19.10 |
