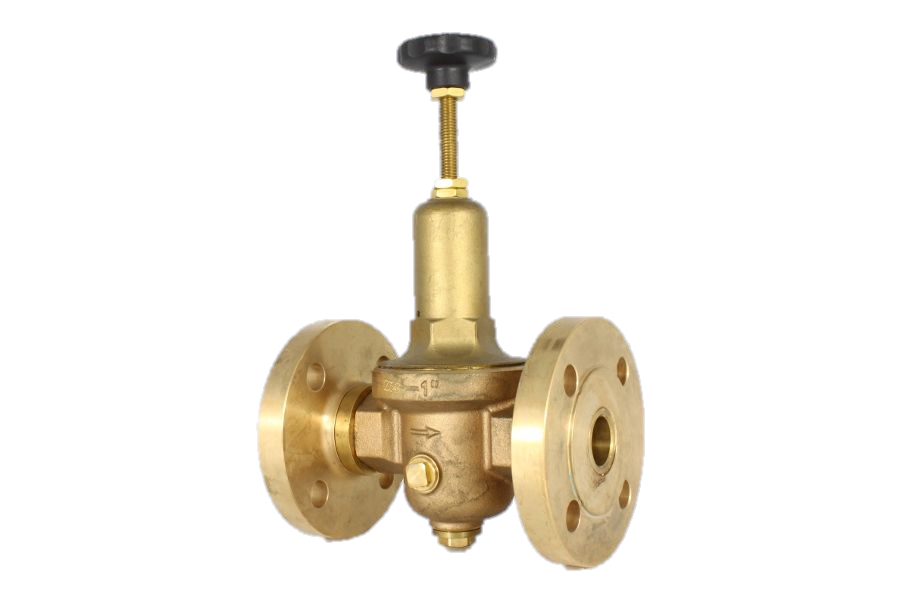

Flanged Pressure Reducing Valve for Gases, 05-050-DRV235

SKU: 05-050-DRV235 Category:

Additional information

Connection Type

Flanges acc. to DIN EN 1092 PN40

Material Body

Gunmetal

Inner Parts

Brass

Seat Sealing

NBR, Soft sealing

Temperature Range

0°C to 75°C

  • Non-balanced single seat piston valve
  • Inlet press. max. 40 bar
  • Outlet pressure 1,5-20 bar
  • Max. reduction proportion 6:1
  • Any mounting position (from DN 32 vertical mounting recommended)
  • Both sides pressure gauge connection G1/4
Art. Nr. DN PN L kg
05-050-DRV235-8 DN8 PN40 130 1.00
05-050-DRV235-10 DN10 PN40 130 1.00
05-050-DRV235-15 DN15 PN40 130 2.80
05-050-DRV235-20 DN20 PN40 150 3.50
05-050-DRV235-25 DN25 PN40 160 4.70
05-050-DRV235-32 DN32 PN40 180 7.30
05-050-DRV235-40 DN40 PN40 200 7.30
05-050-DRV235-50 DN50 PN40 230 12.60
