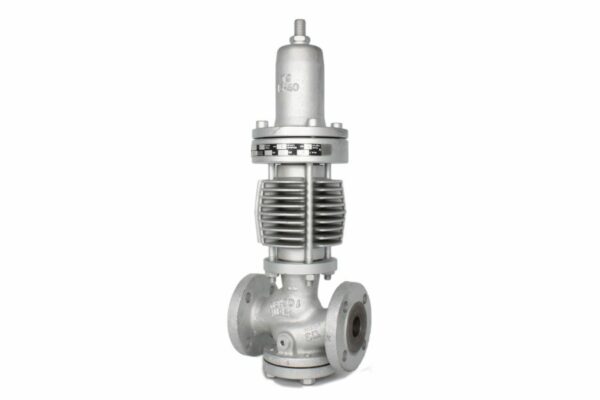

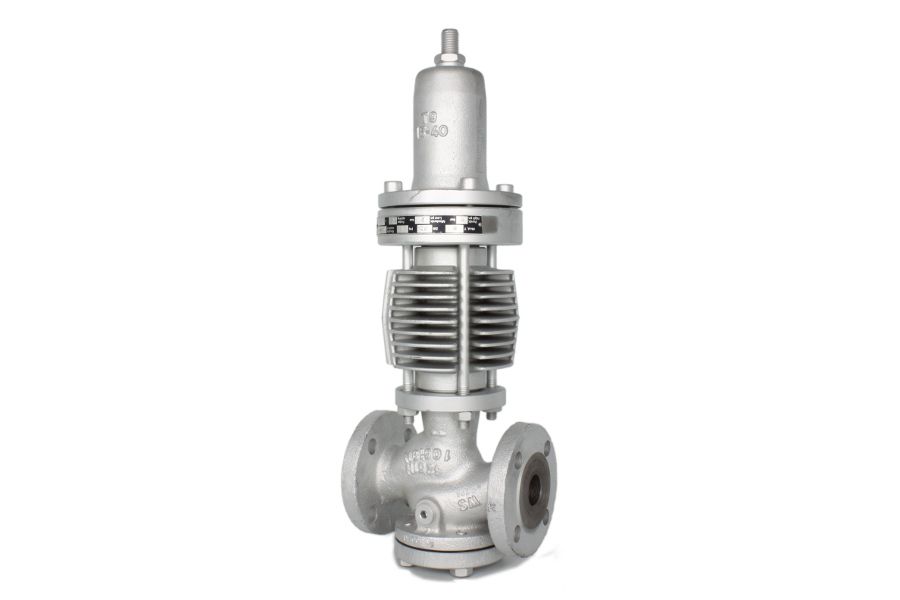

Flanged Pressure Reducing Valve, 05-061-125-200
Additional information
| Connection Type | Flanges acc. to DIN PN40 |
|---|---|
| Material Body | Cast steel |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 300°C |
- For steam
- Max. reduction proportion 10:1
- Inlet pressure max 40 bar
- Outlet pressure 1 bar
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 05-061-125-125 | DN125 | PN40 | 400 | 715 | 270 | 139.00 |
| 05-061-200-150 | DN150 | PN40 | 480 | 720 | 300 | 183.00 |
| 05-061-125-200-200 | DN200 | PN40 | 600 | 950 | 375 | 343.00 |
