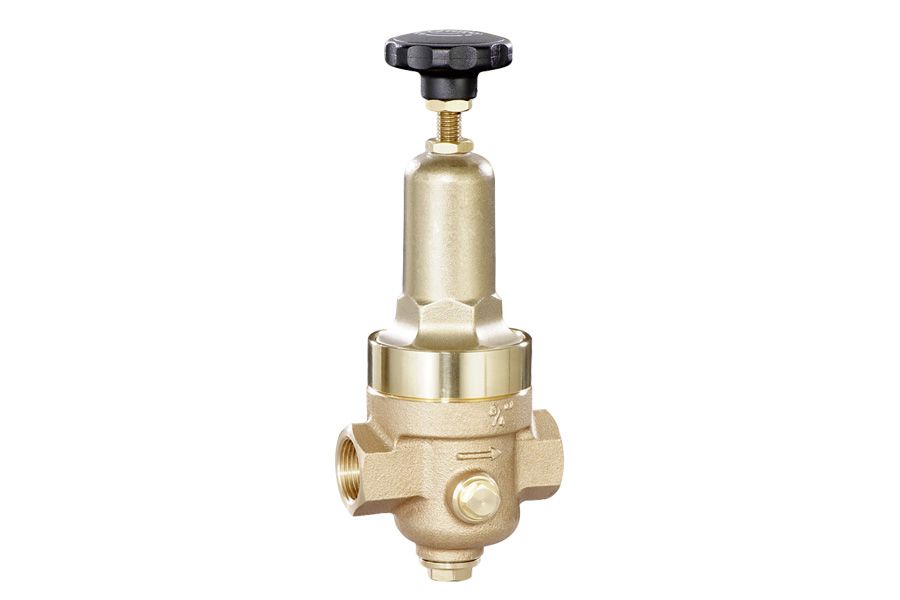

Threaded Pressure Reducing Valve, 05-045-DRV226
Additional information
| Connection Type | Female thread acc. ISO 228/1 |
|---|---|
| Material Body | Gunmetal |
| Inner Parts | Brass |
| Seat Sealing | NBR |
| Temperature Range | 0°C to 75°C |
- Non-balanced single seat valve
- Both sides pressure gauge connections G1/4
- Inlet pressure up to 60 bar
- Outlet pressure 20 – 45 bar (3:1)
- For neutral gases and liquids
| Art. Nr. | DN | PN | L | kg |
| 05-045-DRV226-1/4 | G1/4 | PN60 | 70 | 1.00 |
| 05-045-DRV226-3/8 | G3/8 | PN60 | 70 | 1.00 |
| 05-045-DRV226-1/2 | G1/2 | PN60 | 85 | 2.65 |
| 05-045-DRV226-3/4 | G3/4 | PN60 | 85 | 2.65 |
