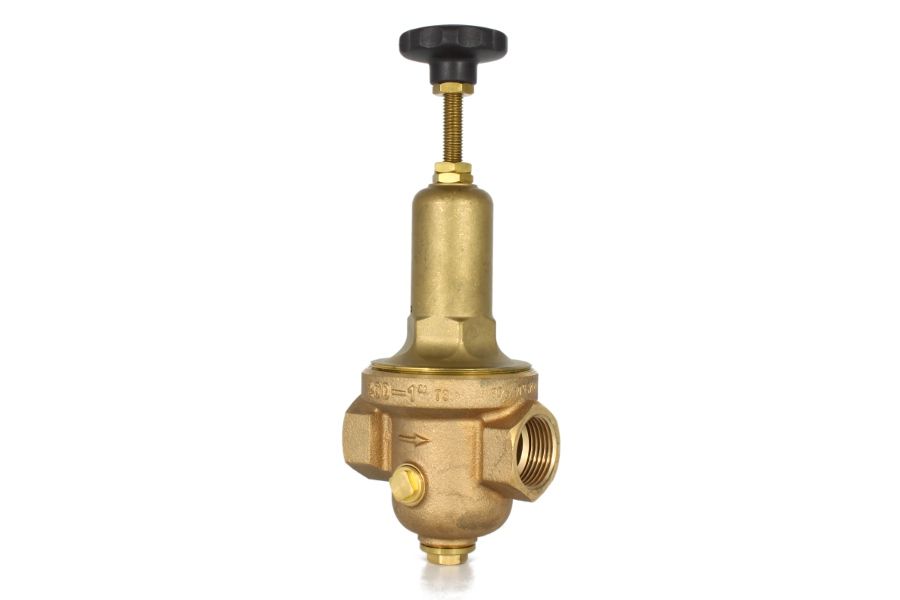

Threaded Pressure Reducing Valve, 05-045-DRV200
Additional information
| Material Body | Gunmetal |
|---|---|
| Inner Parts | Brass |
| Seat Sealing | CR, NBR |
| Temperature Range | 0°C to 75°C |
- Non-balanced single seat valve
- Both ends female thread
- Inlet pressure up to 25 bar
- Outlet pressure 1,5 – 8 bar (10:1)
| Art. Nr. | DN | PN | L | kg |
| 05-045-DRV200-1/4 | G1/4 | PN25 | 70 | 1.00 |
| 05-045-DRV200-3/8 | G3/8 | PN25 | 70 | 1.00 |
| 05-045-DRV200-1/2 | G1/2 | PN25 | 85 | 2.65 |
| 05-045-DRV200-3/4 | G3/4 | PN25 | 85 | 2.65 |
| 05-045-DRV200-1 | G1 | PN25 | 95 | 4.20 |
| 05-045-DRV200-11/4 | G1-1/4 | PN25 | 104 | 7.70 |
| 05-045-DRV200-11/2 | G1-1/2 | PN25 | 108 | 7.70 |
| 05-045-DRV200-2 | G2 | PN25 | 147 | 13.10 |
