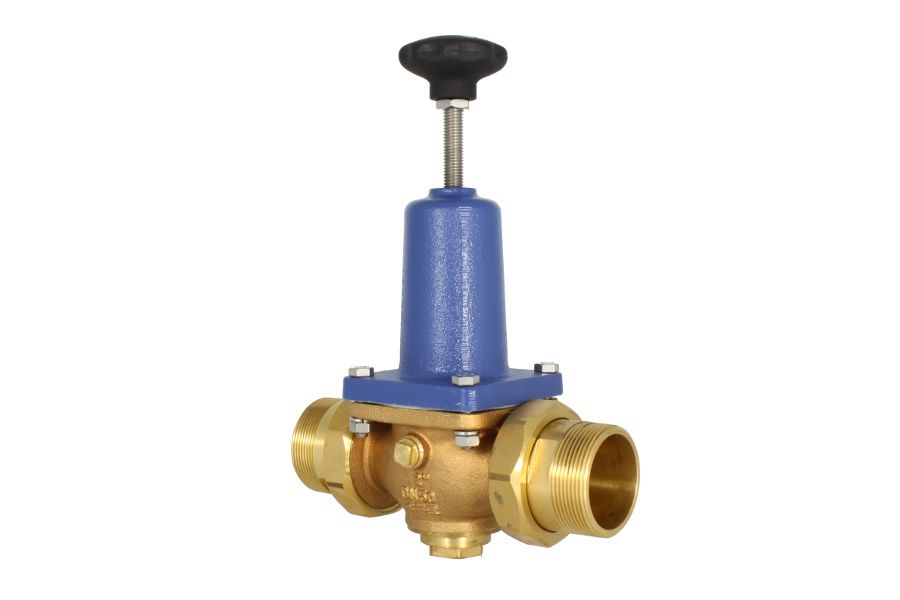

Pressure Reducing Valve for Drinking Water, 05-047-DRV402-6
Additional information
| Connection Type | Male thread acc. to ISO 228/1 |
|---|---|
| Material Body | Cast iron, Gunmetal |
| Inner Parts | Brass, Stainless steel |
| Seat Sealing | NBR |
| Temperature Range | 0°C to 75°C |
- Balanced single seat valve
- DVGW-approval
- Inlet pressure 16 bar (min. 2,5 bar)
- Outlet pressure 1,5 – 6 bar
| Art. Nr. | DN | PN | L | kg |
| 05-047-DRV402-6-40 | DN40 | PN16 | 211 | 4.20 |
| 05-047-DRV402-6-50 | DN50 | PN16 | 211 | 4.70 |
| 05-047-DRV402-6-65 | DN65 | PN16 | 273 | 7.10 |
