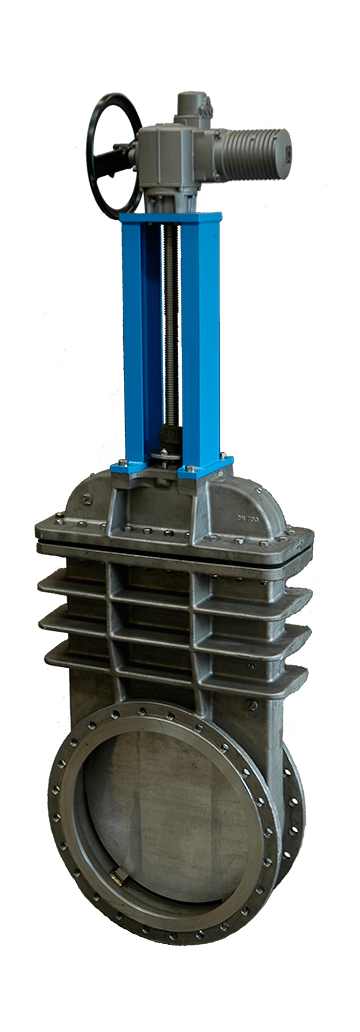

T500 – High Pressure Knife Gate Valve
Additional information
| Connection Type | Flanges acc. to DIN PN25 |
|---|---|
| Material Body | 254SMO, A216 WCB, CF8 (AISI304), CF8M (AISI316), GG25, GGG40, GGG50, SS310, SS904 |
| Inner Parts | 254SMO, 310S, AISI304L, AISI316L, AISI316TI, AISI904L, HARDOX |
| Seat Sealing | EPDM, NBR, SILICONE, VITON |
Unidirectional and bidirectional flanged type knife gate valve. Thanks to its sturdy design, this valve provides better features as regards watertightness and working pressure. Recommended for installations handling highly corrosive or hazardous fluids, or plants working with high pressures.
- Single piece casted body (monoblock)
- The cast bonnet is screwed to the body.
- Gate with rounded edges: prolongs the working life of the rings
- Internal parts reinforced for demanding work
- High flow rates with low pressure drop.
- Directional arrow in the body showing the correct mounting position.
- Design for high pressure conditions.
- Class A for Watertightness (with liquid)
