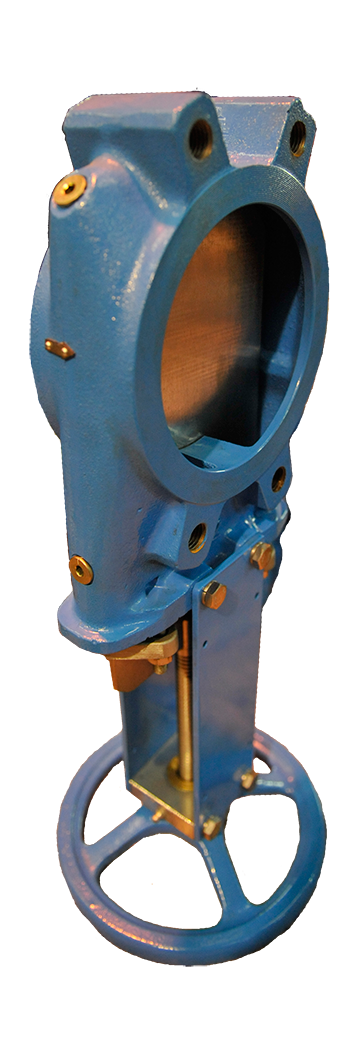

T400 - Hopper Shape Silo Valve
Flanges acc. to ANSI 125/150, Flanges acc. to DIN PN10/16
254SMO, A216 WCB, CF8M (AISI316), GG25, GGG40, GGG50, SS310, SS904
254SMO, HARDOX, SS304L, SS310, SS316L, SS316TI, SS904L
EPDM, NBR, SILICONE, VITON
The Model 400 knife gate valve is a Unidirectional wafer monoblock valve designed for industrial general service. Mainly used in bulk handling applications, discharge of powders and solids.
The special design of the body allows for easy passage of the fluid and makes it ideal for use as a silo outlet valve.
The valve is normally installed in the reverse position (seat upstream) in order to avoid problems like build-up in valve body, seat wear, difficult closing…
- Seating wedges help the knife to close against the body and seat
- Made in one integral casted body with internal guides to support the knife.
- Directional arrow in the body showing correct mounting position.
- Lateral flushing ports (standard) for internal cleaning
- Design for low pressure
