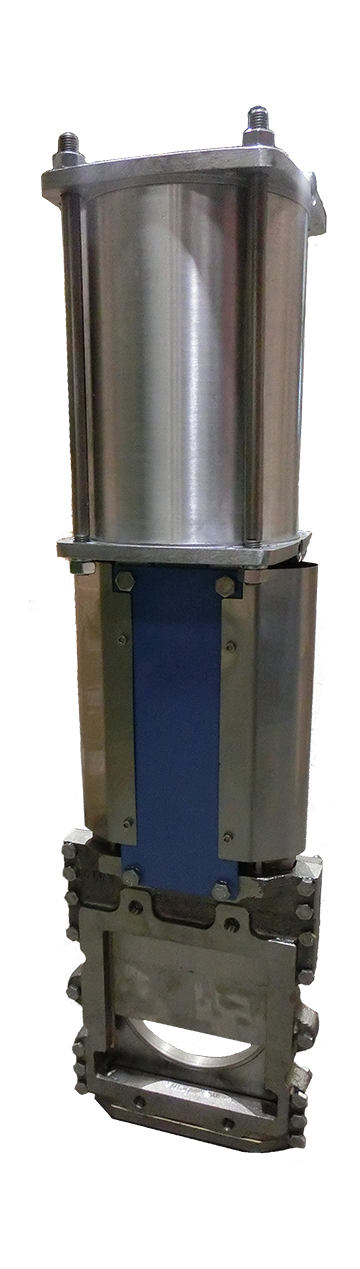

RC - Square Round Knife Gate Valve

SKU: RC Category:

Additional information

Connection Type

Flanges acc. to ANSI 125/150, Flanges acc. to DIN PN10

Material Body

254SMO, A216 WCB, AISI 904, CF8 (AISI304), CF8M (AISI316), GG25, GGG40, GGG50, SS310

Inner Parts

254SMO, AISI304L, AISI316L, AISI316TI, HARDOX

Seat Sealing

EPDM, NITRILE (NBR), SILICONE, VITON

The square round Wafer knife gate is a heavy duty valve design for handling difficult applications. This valve is suitable for use in recycling applications, like rubbish or sand traps of pulpers, high consistency cleaners… or as silo outlet with solid material.

The two piece body with round inlet and square outlet (larger than the inlet) assures non-jamming.

  • Cast two-part bolted body, internally machined and with reinforcing ribs in larger
  • diameters for extra body strength.
  • The internal replaceable gate guides allow for smoother gate traveling.
  • Oversized knife polished on both sides
  • Long-life packing with several impregnated Synt+PTFE strips
  • Suitable to work with the most severe applications
