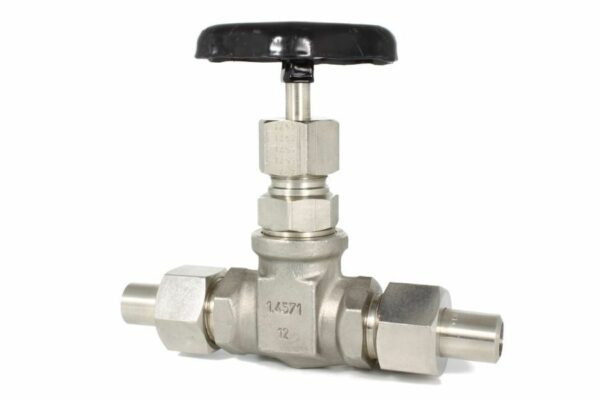

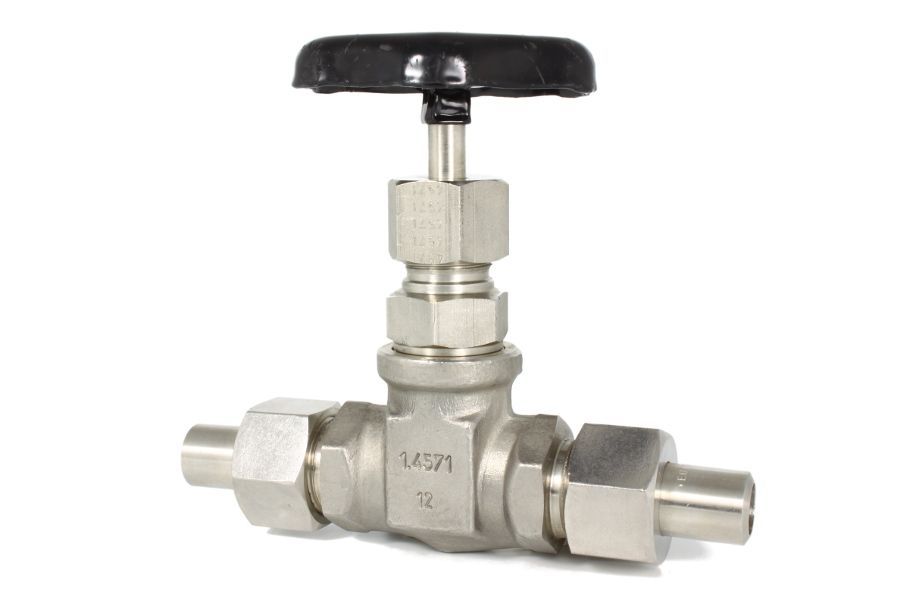

High Pressure Globe Valve, 01-151.1
Additional information
| Material Body | Stainless steel |
|---|---|
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 300°C |
- Internal threaded spindle
- Light series
| Art. Nr. | DN | PN | L | H | ØD |
| 01-151.1-4 | DN4 | PN315 | 80 | 120 | 70 |
| 01-151.1-5 | DN5 | PN315 | 80 | 120 | 70 |
| 01-151.1-7 | DN7 | PN315 | 80 | 120 | 70 |
| 01-151.1-8 | DN8 | PN315 | 80 | 120 | 70 |
| 01-151.1-10 | DN10 | PN315 | 100 | 135 | 90 |
| 01-151.1-12 | DN12 | PN315 | 100 | 135 | 90 |
| 01-151.1-13 | DN13 | PN160 | 100 | 135 | 90 |
| 01-151.1-17 | DN17 | PN160 | 130 | 165 | 100 |
| 01-151.1-24 | DN24 | PN160 | 130 | 175 | 100 |
| 01-151.1-28 | DN28 | PN160 | 160 | 220 | 160 |
