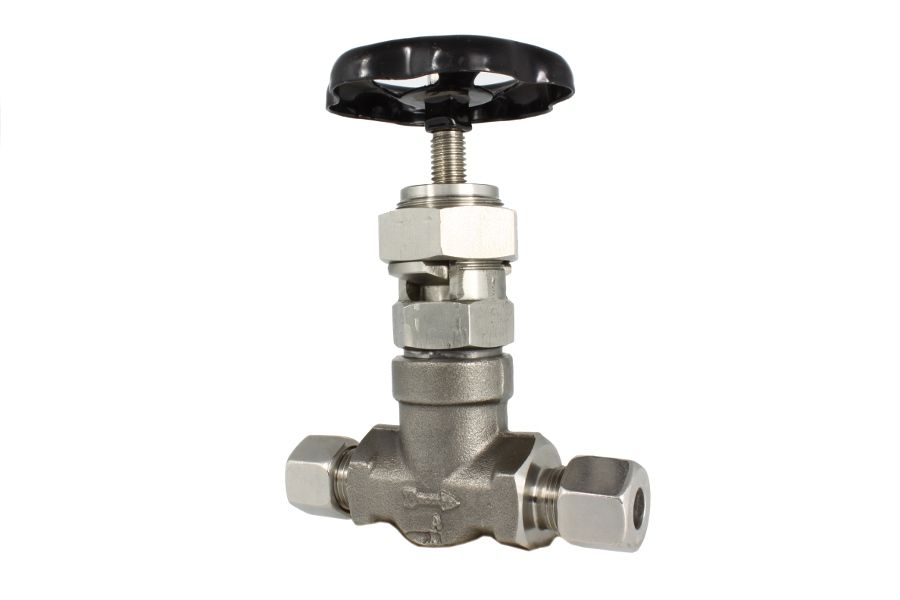

High Pressure Globe Valve, 01-152
Additional information
| Material Body | Stainless steel |
|---|---|
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 300°C |
- External threaded spindle
| Art. Nr. | DN | PN | H | ØD |
| 01-152-4-6 | DN4 | PN160 | 124 | 100 |
| 01-152-4-8 | DN4 | PN160 | 124 | 100 |
| 01-152-6 | DN6 | PN160 | 124 | 100 |
| 01-152-8 | DN8 | PN160 | 124 | 100 |
| 01-152-10 | DN10 | PN160 | 124 | 100 |
| 01-152-12 | DN12 | PN160 | 124 | 100 |
| 01-152-16 | DN16 | PN160 | 124 | 100 |
| 01-152-20 | DN20 | PN160 | 153 | 125 |
