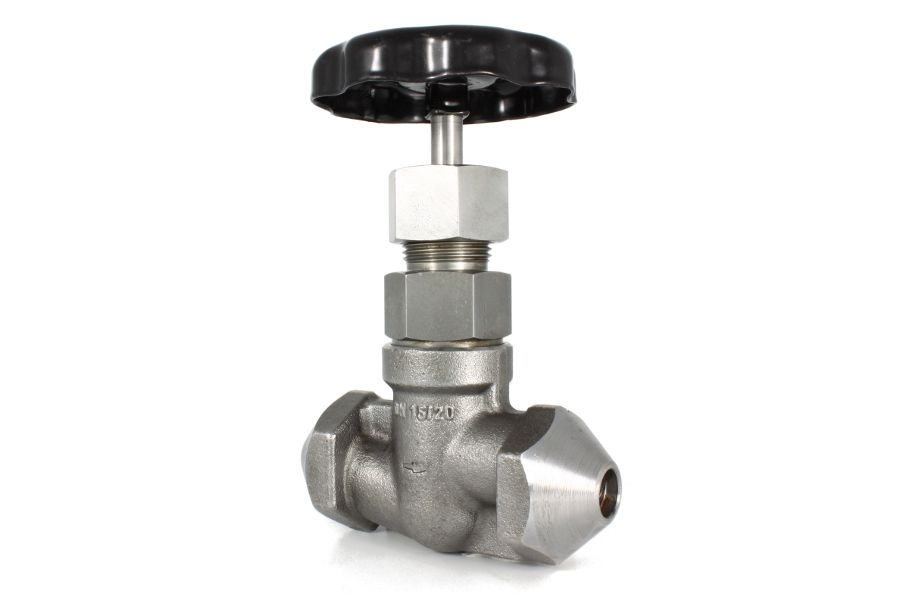

High Pressure Globe Valve, 01-155
Additional information
| Material Body | Forged steel |
|---|---|
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 300°C |
| Art. Nr. | DN | PN | L | kg |
| 01-155-6 | DN6 | PN640 | 80 | 0.70 |
| 01-155-8 | DN8 | PN640 | 80 | 0.70 |
| 01-155-10 | DN10 | PN320 | 100 | 1.20 |
| 01-155-15 | DN15 | PN320 | 130 | 2.60 |
| 01-155-18 | DN18 | PN320 | 130 | 2.60 |
| 01-155-20 | DN20 | PN250 | 130 | 3.30 |
| 01-155-22 | DN22 | PN250 | 130 | 3.30 |
| 01-155-25 | DN25 | PN250 | 130 | 3.90 |
| 01-155-32 | DN32 | PN160 | 160 | 3.90 |
