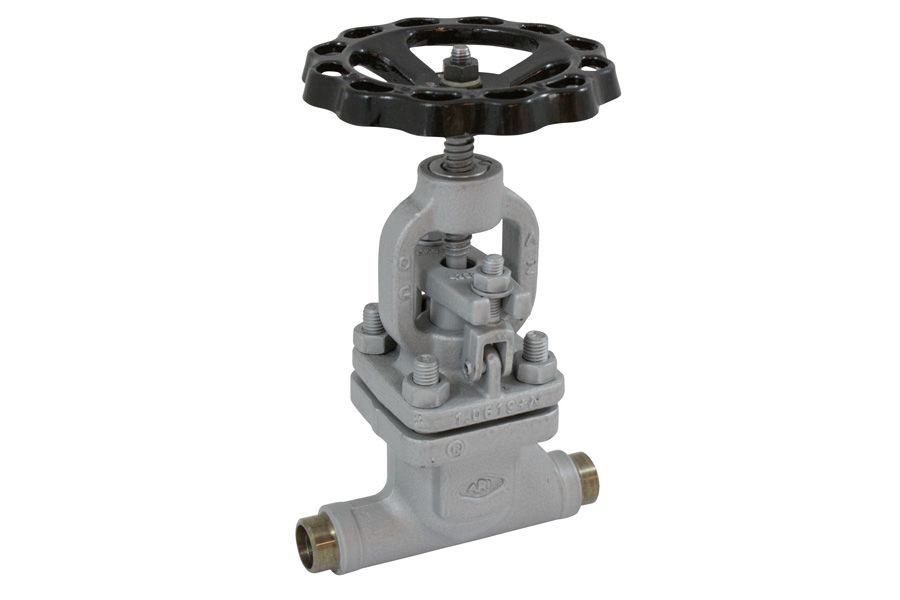

Globe Valve with Welding Ends, 01-446PN63
Additional information
| Connection Type | Butt weld ends acc. to DIN EN 16267 |
|---|---|
| Material Body | Forged steel |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -20°C to 450°C |
- Bolted bonnet
- Gland seal
- Rising stem
- Fix plug
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-446PN63-15 | DN15 | PN63 | 150 | 220 | 180 | 6.20 |
| 01-446PN63-20 | DN20 | PN63 | 150 | 220 | 180 | 5.50 |
| 01-446PN63-25 | DN25 | PN63 | 160 | 220 | 180 | 5.80 |
| 01-446PN63-32 | DN32 | PN63 | 180 | 285 | 225 | 13.20 |
| 01-446PN63-40 | DN40 | PN63 | 210 | 285 | 225 | 12.80 |
| 01-446PN63-50 | DN50 | PN63 | 250 | 345 | 225 | 15.00 |
