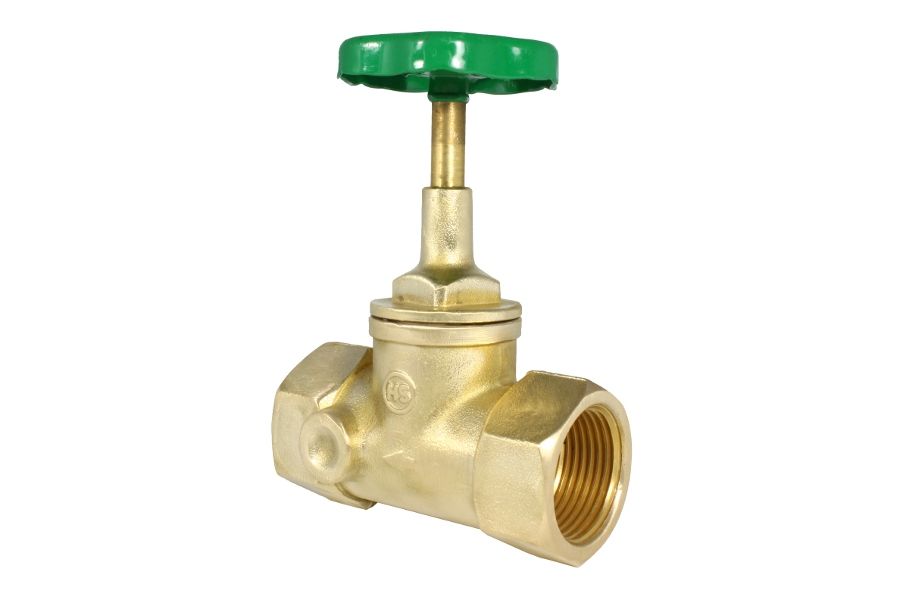

Globe Valve, 01-015
Additional information
| Connection Type | Female thread acc. ISO 228/1 |
|---|---|
| Material Body | Brass |
| Inner Parts | Brass |
| Seat Sealing | Soft sealing |
| Temperature Range | 0°C to 90°C |
- Without drain
| Art. Nr. | DN | PN | L | H | kg |
| 01-015-1/4 | G1/4 | PN10 | – | – | – |
| 01-015-3/8 | G3/8 | PN10 | 55 | 71 | 0.30 |
| 01-015-1/2 | G1/2 | PN10 | 65 | 71 | 0.30 |
| 01-015-3/4 | G3/4 | PN10 | 75 | 91 | 0.30 |
| 01-015-1 | G1 | PN10 | 90 | 110 | 0.40 |
| 01-015-1-1/4 | G11/4 | PN10 | 110 | 132 | 0.70 |
| 01-015-1-1/2 | G1-1/2 | PN10 | 120 | 139 | 1.10 |
| 01-015-2 | G2 | PN10 | 150 | 156 | 1.50 |
