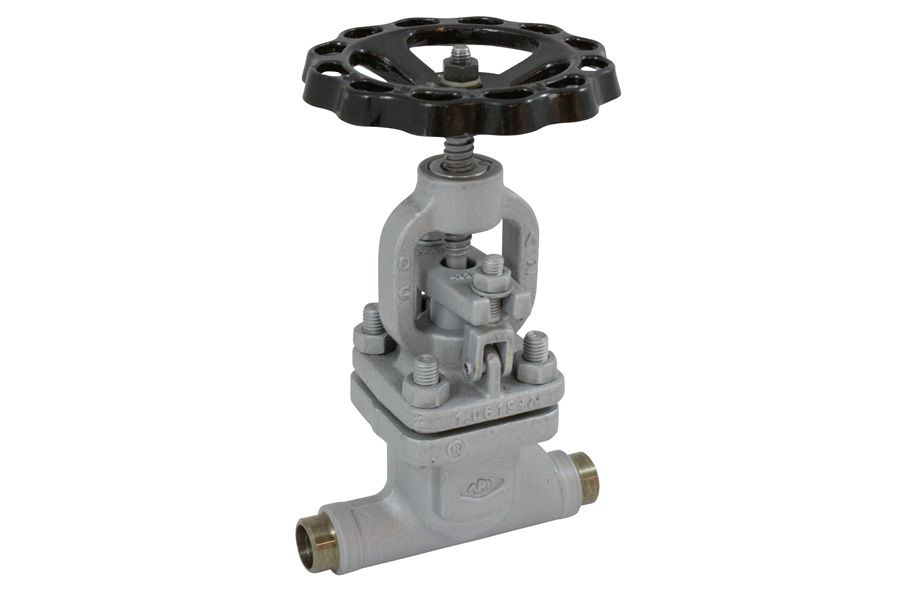

Globe Valve with Welding Ends, 01-446
Additional information
| Connection Type | Butt weld ends acc. to DIN EN 16267 |
|---|---|
| Material Body | Forged steel |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -20°C to 450°C |
- Bolted bonnet
- Gland seal
- Rising stem
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-446-15 | DN15 | PN40 | 130 | 180 | 120 | 2.90 |
| 01-446-20 | DN20 | PN40 | 150 | 180 | 120 | 3.00 |
| 01-446-25 | DN25 | PN40 | 160 | 190 | 140 | 3.50 |
| 01-446-32 | DN32 | PN40 | 180 | 190 | 140 | 3.50 |
| 01-446-40 | DN40 | PN40 | 200 | 225 | 160 | 6.20 |
| 01-446-50 | DN50 | PN40 | 230 | 235 | 160 | 7.80 |
| 01-446-65 | DN65 | PN40 | 290 | 265 | 180 | 16.00 |
| 01-446-80 | DN80 | PN40 | 310 | 290 | 200 | 21.00 |
| 01-446-100 | DN100 | PN40 | 350 | 345 | 225 | 28.00 |
| 01-446-125 | DN125 | PN40 | 400 | 375 | 250 | 45.00 |
| 01-446-150 | DN150 | PN40 | 480 | 465 | 400 | 66.00 |
| 01-446-200 | DN200 | PN40 | 600 | 570 | 520 | 143.00 |
| 01-446-250 | DN250 | PN40 | 730 | 700 | 520 | 228.00 |
