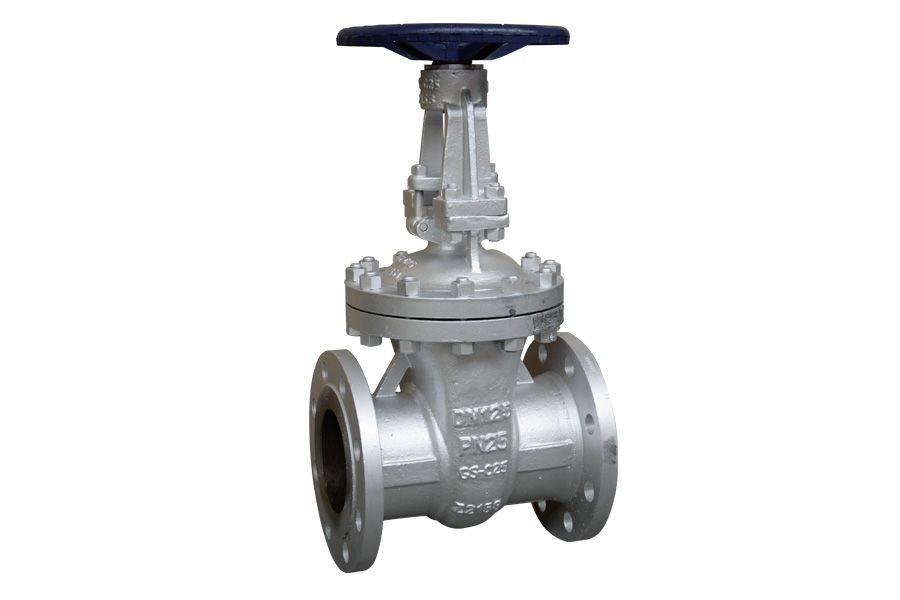

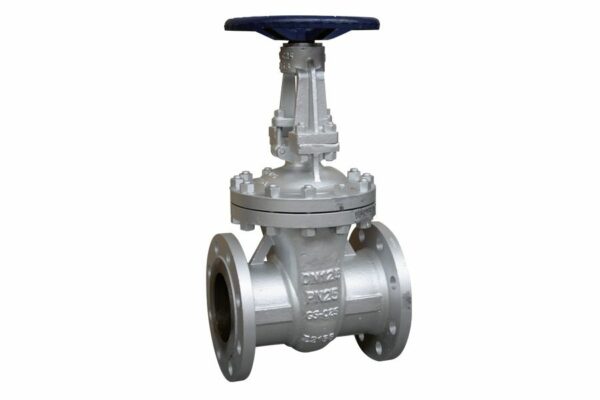

Flanged Wedge Gate Valve, 02-064
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN40 |
|---|---|
| Material Body | Cast steel |
| Inner Parts | Stainless steel |
| Seat Sealing | Stainless steel |
| Temperature Range | -20°C to 400°C |
- Top rack
- Rising stem
| Art. Nr. | DN | PN | L | ØD | kg |
| 02-064-40 | DN40 | PN40 | 240 | 150 | 30.00 |
| 02-064-50 | DN50 | PN40 | 250 | 165 | 31.00 |
| 02-064-65 | DN65 | PN40 | 290 | 185 | 39.00 |
| 02-064-80 | DN80 | PN40 | 310 | 200 | 52.00 |
| 02-064-100 | DN100 | PN40 | 350 | 235 | 82.00 |
| 02-064-125 | DN125 | PN40 | 400 | 270 | 129.00 |
| 02-064-150 | DN150 | PN40 | 450 | 300 | 156.00 |
| 02-064-200 | DN200 | PN40 | 550 | 375 | 266.00 |
| 02-064-250 | DN250 | PN40 | 650 | 450 | 371.00 |
| 02-064-300 | DN300 | PN40 | 750 | 515 | 551.00 |
| 02-064-350 | DN350 | PN40 | 850 | 580 | – |
| 02-064-400 | DN400 | PN40 | 950 | 660 | – |
| 02-064-500 | DN500 | PN40 | 1150 | 755 | – |
| 02-064-600 | DN600 | PN40 | 1350 | 890 | – |
