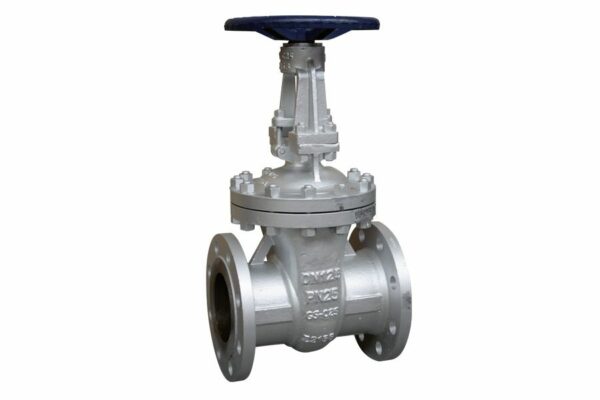

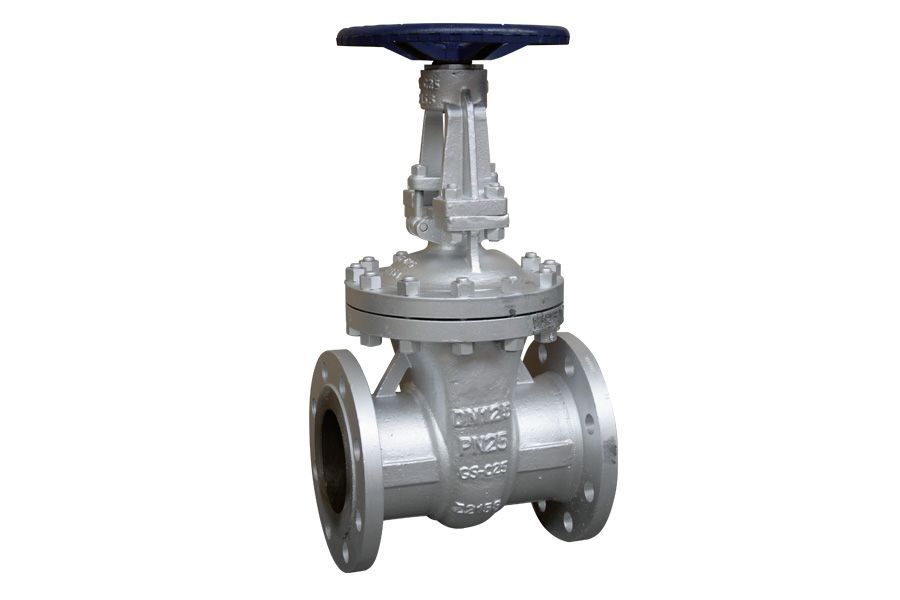

Flanged Wedge Gate Valve, 02-062
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN16 |
|---|---|
| Material Body | Cast steel |
| Inner Parts | Stainless steel |
| Seat Sealing | Stainless steel |
| Temperature Range | -20°C to 400°C |
- Top rack
- Rising stem
| Art. Nr. | DN | PN | L | ØD | kg |
| 02-062-40 | DN40 | PN25 | 240 | 150 | 12.00 |
| 02-062-50 | DN50 | PN25 | 250 | 165 | 13.00 |
| 02-062-65 | DN65 | PN25 | 270 | 185 | 26.00 |
| 02-062-80 | DN80 | PN25 | 280 | 200 | 30.00 |
| 02-062-100 | DN100 | PN25 | 300 | 235 | 40.00 |
| 02-062-125 | DN125 | PN25 | 325 | 270 | 60.00 |
| 02-062-150 | DN150 | PN25 | 350 | 300 | 71.00 |
| 02-062-200 | DN200 | PN25 | 400 | 360 | 120.00 |
| 02-062-250 | DN250 | PN25 | 450 | 425 | 200.00 |
| 02-062-300 | DN300 | PN25 | 500 | 485 | 300.00 |
| 02-062-350 | DN350 | PN25 | 550 | 555 | 560.00 |
| 02-062-400 | DN400 | PN25 | 600 | 620 | 680.00 |
| 02-062-500 | DN500 | PN25 | 700 | 730 | 1050.00 |
| 02-062-600 | DN600 | PN25 | 800 | 845 | 1500.00 |
