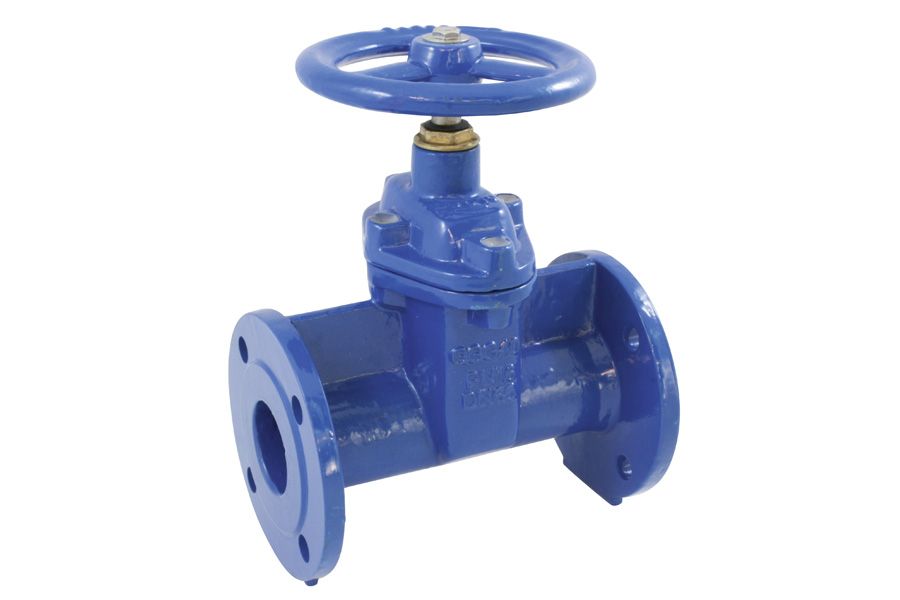

Flange wedge gate valve oval type, 02-046
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN16 |
|---|---|
| Material Body | NCI/epoxy |
| Inner Parts | Stainless steel |
| Seat Sealing | Soft sealing |
| Temperature Range | 0°C to 70°C |
- Internal Stem
- Soft sealing
| Art. Nr. | DN | PN | L | H | kg |
| 02-046-40 | DN40 | PN16 | 240 | 233 | 9.40 |
| 02-046-50 | DN50 | PN16 | 250 | 240 | 10.20 |
| 02-046-65 | DN65 | PN16 | 270 | 277 | 16.80 |
| 02-046-80 | DN80 | PN16 | 280 | 300 | 19.80 |
| 02-046-100 | DN100 | PN16 | 300 | 339 | 25.60 |
| 02-046-125 | DN125 | PN16 | 325 | 376 | 33.40 |
| 02-046-150 | DN150 | PN16 | 350 | 438 | 46.80 |
| 02-046-200 | DN200 | PN16 | 400 | 512 | 78.10 |
| 02-046-250 | DN250 | PN16 | 450 | 611 | 100.00 |
| 02-046-300 | DN300 | PN16 | 500 | 686 | 137.30 |
