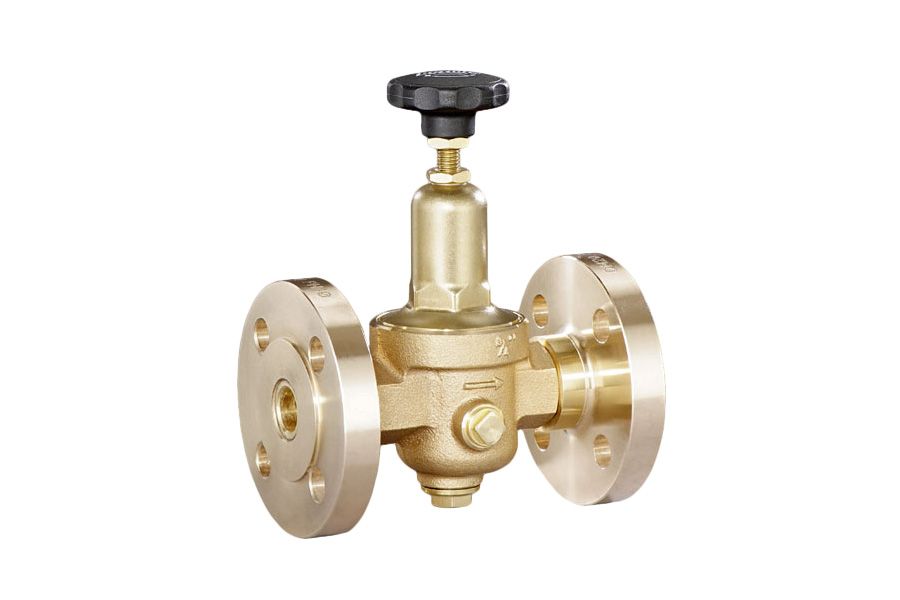

Flanged Pressure Reducing Valve for Gases, 05-050-DRV230

SKU: 05-050-DRV230 Category:

Additional information

Connection Type

Flanges acc. to DIN EN 1092 PN40

Material Body

Gunmetal

Inner Parts

Brass

Seat Sealing

NBR

Temperature Range

0°C to 75°C

  • Non-balanced single seat diaphragm valve
  • Inlet press. max. 25 bar
  • Outlet pressure 1,5-8 bar (10:1)
  • Double-sided pressure gauge connection G1/4
Art. Nr. DN PN L kg
05-050-DRV230-8 DN8 PN25 130 1.00
05-050-DRV230-10 DN10 PN25 130 1.00
05-050-DRV230-15 DN15 PN25 130 2.80
05-050-DRV230-20 DN20 PN25 150 3.50
05-050-DRV230-25 DN25 PN25 160 4.70
05-050-DRV230-32 DN32 PN25 180 7.30
05-050-DRV230-40 DN40 PN25 200 7.30
05-050-DRV230-50 DN50 PN25 230 12.60
