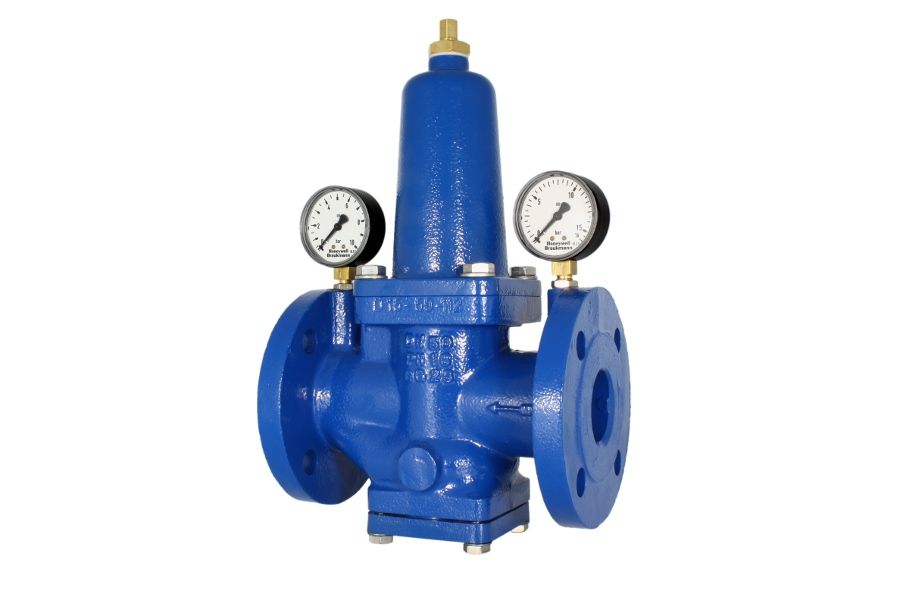

Flanged Pressure Reducing Valve, 05-053
Additional information
| Material Body | Cast iron |
|---|---|
| Inner Parts | EPDM, Gunmetal |
| Seat Sealing | NBR |
| Temperature Range | -10°C to 80°C |
- Pressure relief valve
- Non-rising stem with indicator
- Inlet pressure max 16 bar
- Outlet pressure 1,5 – 8 bar
| Art. Nr. | DN | PN | L | H | Kg |
| 05-053-50 | DN50 | PN16 | 230 | 106 | 16.20 |
| 05-053-65 | DN65 | PN16 | 290 | 126 | 28.20 |
| 05-053-80 | DN80 | PN16 | 310 | 154 | 41.50 |
| 05-053-100 | DN100 | PN16 | 350 | 183 | 67.00 |
| 05-053-125 | DN125 | PN16 | 400 | 210 | 103.00 |
| 05-053-150 | DN150 | PN16 | 480 | 248 | 150.00 |
