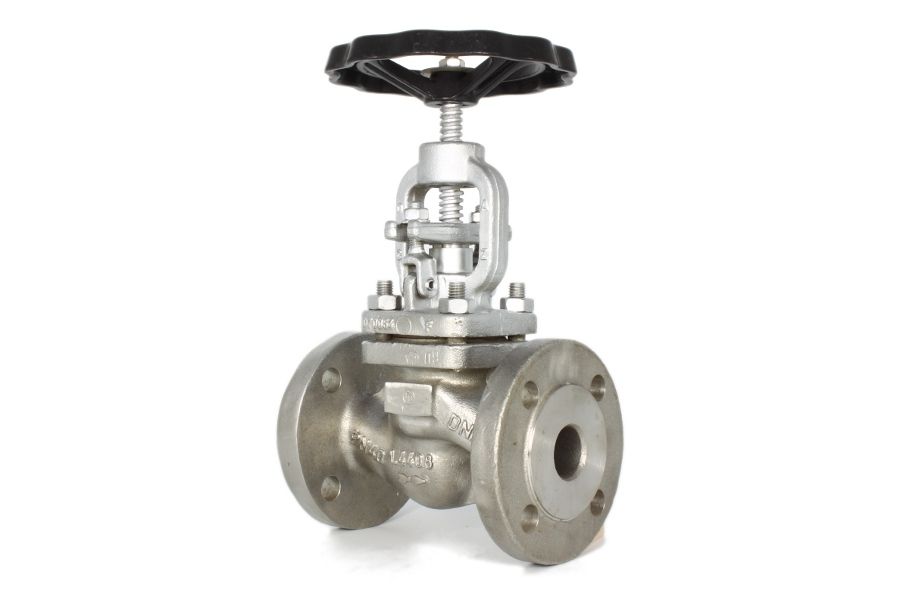

Flanged Globe Valve, 01-450
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN40 |
|---|---|
| Material Body | Stainless steel |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -20°C to 400°C |
- Bolted bonnet
- Gland seal
- Rising stem
- Fix plug
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-450-15 | DN15 | PN40 | 130 | 189 | 95 | 4.80 |
| 01-450-20 | DN20 | PN40 | 150 | 189 | 105 | 5.40 |
| 01-450-25 | DN25 | PN40 | 160 | 203 | 115 | 7.10 |
| 01-450-32 | DN32 | PN40 | 180 | 203 | 140 | 8.00 |
| 01-450-40 | DN40 | PN40 | 200 | 246 | 150 | 11.50 |
| 01-450-50 | DN50 | PN40 | 230 | 254 | 165 | 13.50 |
| 01-450-65 | DN65 | PN40 | 290 | 293 | 185 | 23.50 |
| 01-450-80 | DN80 | PN40 | 310 | 322 | 200 | 28.00 |
| 01-450-100 | DN100 | PN40 | 350 | 381 | 235 | 39.50 |
| 01-450-125 | DN125 | PN40 | 400 | 427 | 270 | 61.00 |
| 01-450-150 | DN150 | PN40 | 480 | 521 | 300 | 84.00 |
| 01-450-200 | DN200 | PN40 | 600 | 643 | 375 | 170.00 |
