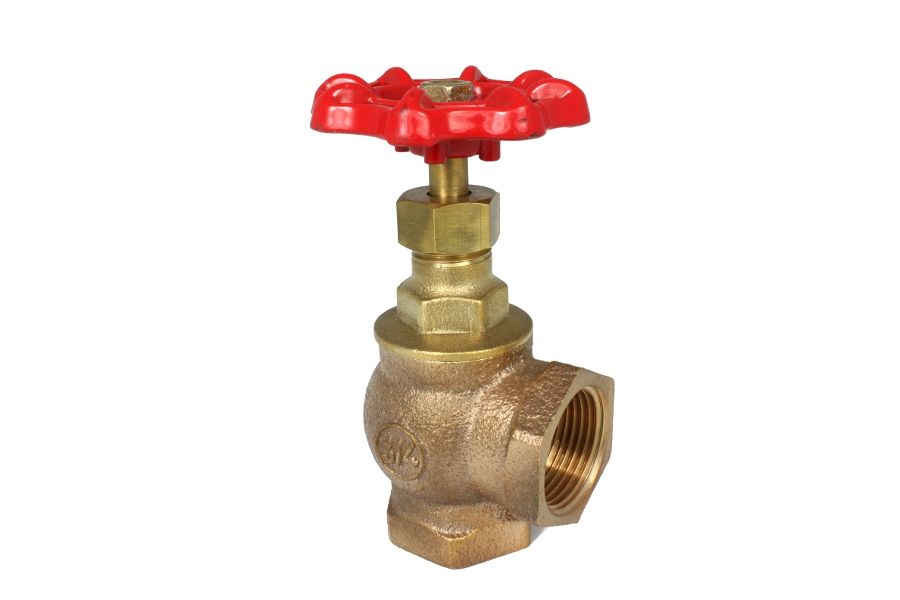

Threaded Globe Valve, 01-005
Additional information
| Connection Type | Female thread acc. ISO 228/1 |
|---|---|
| Material Body | Gunmetal |
| Inner Parts | Brass |
| Seat Sealing | PTFE |
| Temperature Range | -10°C to 150°C |
- Screwed bonnet
- Fix plug
| Art. Nr. | DN | PN | L | H | kg |
| 01-005-1/4 | G1/4 | PN16 | 21 | 56 | 0.30 |
| 01-005-3/8 | G3/8 | PN16 | 21 | 56 | 0.30 |
| 01-005-1/2 | G1/2 | PN16 | 25 | 66 | 0.30 |
| 01-005-3/4 | G3/4 | PN16 | 31 | 73 | 0.40 |
| 01-005-1 | G1 | PN16 | 34 | 95 | 0.50 |
| 01-005-1-1/4 | G11/4 | PN16 | 42 | 112 | 0.70 |
| 01-005-1-1/2 | G1-1/2 | PN16 | 49 | 130 | 1.00 |
| 01-005-2 | G2 | PN16 | 57 | 130 | 1.60 |
