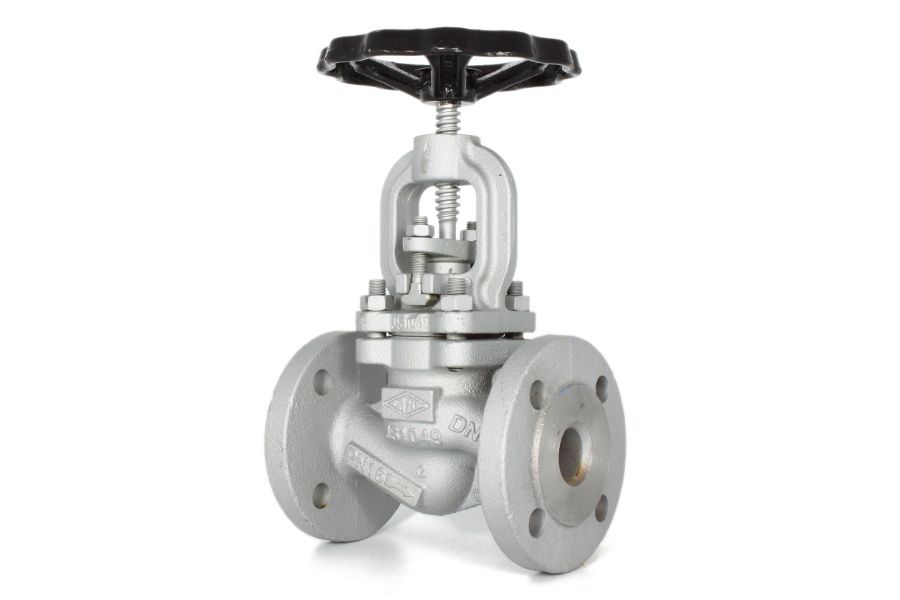

Flanged Globe Valve, 01-392

SKU: 01-392 Category:

Additional information

Connection Type

Flanges acc. to DIN PN10/16

Material Body

Nodular cast iron

Inner Parts

Stainless steel

Seat Sealing

Metallic

Temperature Range

-10°C to 350°C

  • Bolted bonnet
  • Gland seal
  • Rising stem
  • Fix plug
Art. Nr. DN PN L H ØD kg
01-392-15 DN15 PN16 130 189 95 3.90
01-392-20 DN20 PN16 150 189 105 4.30
01-392-25 DN25 PN16 160 203 115 5.40
01-392-32 DN32 PN16 180 203 140 7.00
01-392-40 DN40 PN16 200 246 150 9.50
01-392-50 DN50 PN16 230 254 165 12.90
01-392-65 DN65 PN16 290 293 185 18.40
01-392-80 DN80 PN16 310 322 200 24.50
01-392-100 DN100 PN16 350 381 220 36.00
01-392-125 DN125 PN16 400 427 250 56.00
01-392-150 DN150 PN16 480 521 285 78.00
01-392-200 DN200 PN10 600 643 340 122.00
01-392-250 DN250 PN10 730 780 395 247.00
01-392-300 DN300 PN10 850 890 445 336.00
