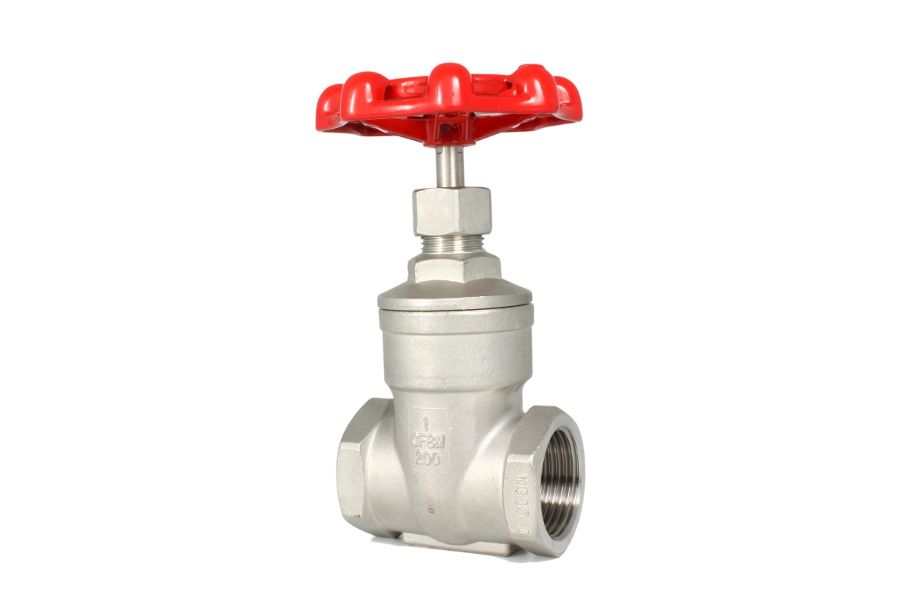

Threaded Gate Valve, 02-005
Additional information
| Connection Type | Female thread acc. ISO 228/1 |
|---|---|
| Material Body | Stainless steel |
| Inner Parts | Stainless steel |
| Seat Sealing | PTFE |
| Temperature Range | -20°C to 200°C |
- Non-rising stem
- Screwed bonnet
| Art. Nr. | DN | PN | L | H | kg |
| 02-005-1/2 | G1/2 | PN16 | 55 | 101 | 0.44 |
| 02-005-3/4 | G3/4 | PN16 | 60 | 108 | 0.54 |
| 02-005-1 | G1 | PN16 | 65 | 118 | 0.66 |
| 02-005-11/4 | G1-1/4 | PN16 | 75 | 132 | 0.98 |
| 02-005-11/2 | G1-1/2 | PN16 | 85 | 149 | 1.42 |
| 02-005-2 | G2 | PN16 | 95 | 175 | 2.06 |
| 02-005-21/2 | G2-1/2 | PN16 | 116 | 213 | 5.80 |
| 02-005-3 | G3 | PN16 | 130 | 241 | 8.80 |
