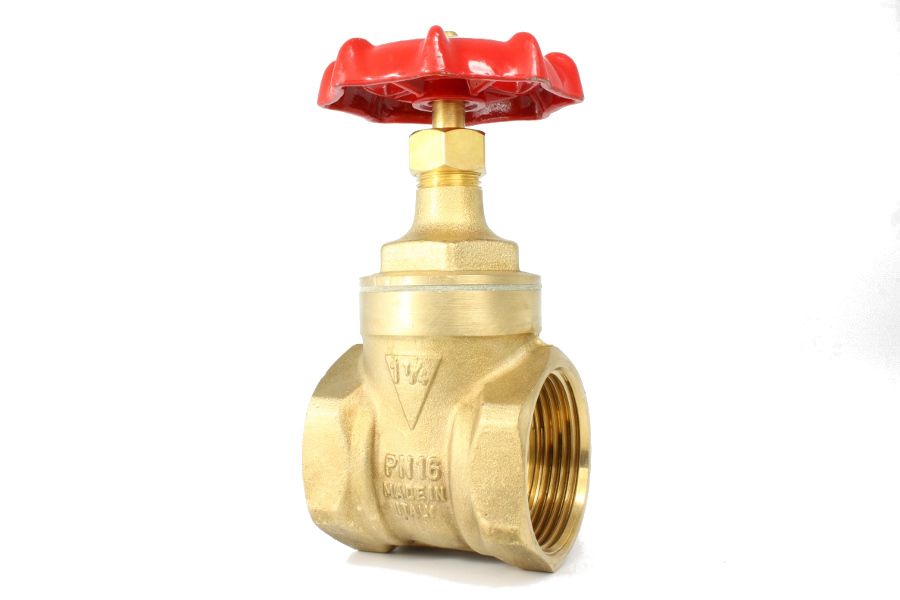

Threaded Gate Valve, 02-002
Additional information
| Connection Type | Female thread acc. ISO 228/1 |
|---|---|
| Material Body | Brass |
| Inner Parts | Brass |
| Seat Sealing | Metallic |
| Temperature Range | 0°C to 120°C |
- Full bore, gland packing
- Non-rising stem
- Max. operating pressure 16 bar
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 02-002-1/2 | G1/2 | PN16 | 42 | 79 | 50 | 0.22 |
| 02-002-3/4 | G3/4 | PN16 | 46 | 80 | 55 | 0.26 |
| 02-002-1 | G1 | PN16 | 50 | 96 | 60 | 0.36 |
| 02-002-11/4 | G1-1/4 | PN16 | 55 | 100 | 65 | 0.50 |
| 02-002-11/2 | G1-1/2 | PN16 | 60 | 114 | 65 | 0.69 |
| 02-002-2 | G2 | PN16 | 67 | 135 | 80 | 1.10 |
| 02-002-21/2 | G2-1/2 | PN16 | 69 | 180 | 110 | 2.16 |
| 02-002-3 | G3 | PN16 | 71 | 200 | 110 | 3.01 |
