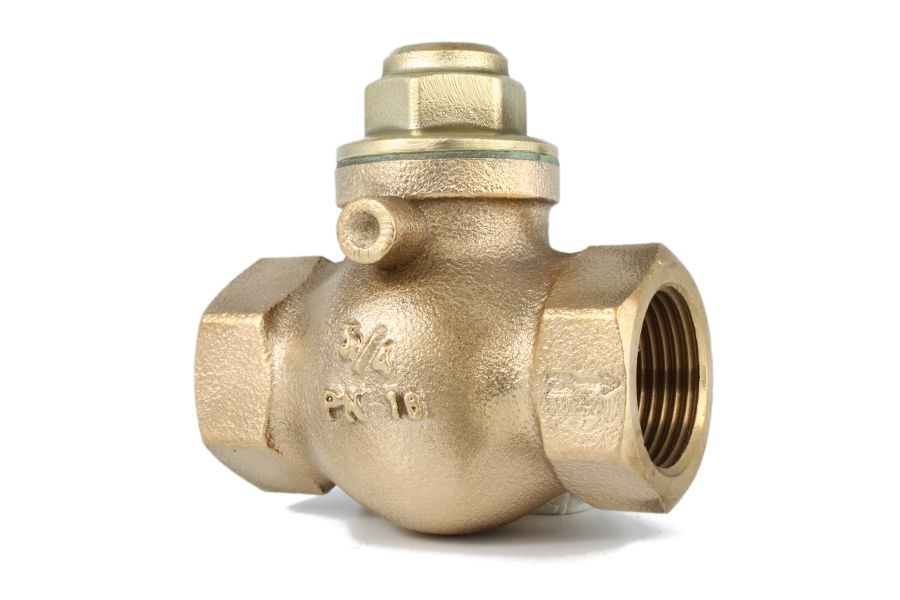

Threaded Check Valve, 01-665
Additional information
| Connection Type | Female thread acc. ISO 228/1 |
|---|---|
| Material Body | Gunmetal |
| Inner Parts | Brass |
| Seat Sealing | PTFE |
| Temperature Range | -10°C to 225°C |
- Screwed bonnet
- Spring loaded
- Horizontal and vertical mounting
| Art. Nr. | DN | PN | L | H | Kg |
| 01-665-1/4 | G1/4 | PN16 | 50 | 40 | 0.20 |
| 01-665-3/8 | G3/8 | PN16 | 50 | 40 | 0.20 |
| 01-665-1/2 | G1/2 | PN16 | 60 | 40 | 0.30 |
| 01-665-3/4 | G3/4 | PN16 | 70 | 50 | 0.40 |
| 01-665-1 | G1 | PN16 | 80 | 55 | 0.60 |
| 01-665-11/4 | G1-1/4 | PN16 | 95 | 55 | 0.90 |
| 01-665-11/2 | G1-1/2 | PN16 | 105 | 65 | 1.30 |
| 01-665-2 | G2 | PN16 | 130 | 75 | 2.00 |
| 01-665-21/2 | G2-1/2 | PN16 | 150 | 95 | 3.50 |
| 01-665-3 | G3 | PN16 | 165 | 110 | 5.00 |
| 01-665-4 | G4 | PN16 | 205 | 160 | 10.50 |
