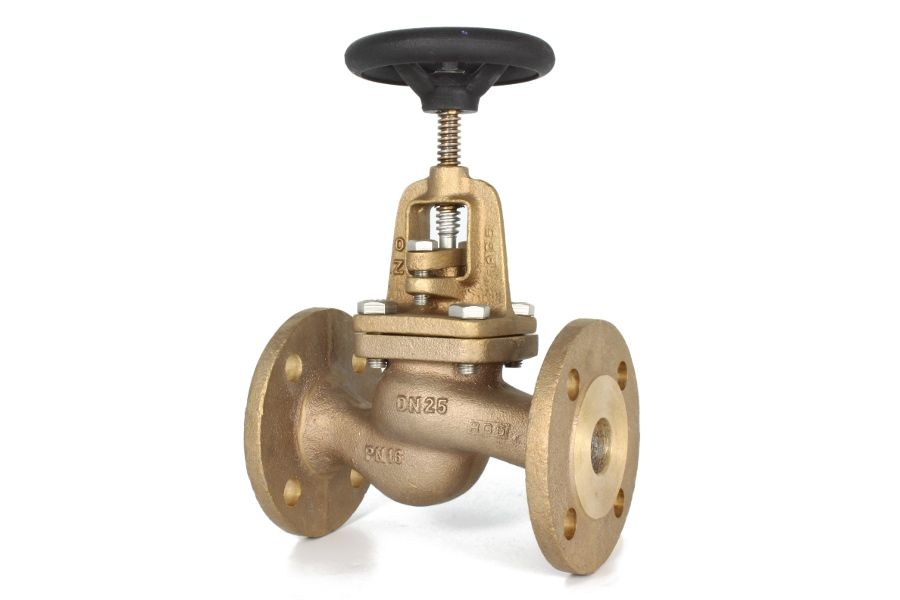

Flange SDNR-Valve, 01-363

SKU: 01-363 Category:

Additional information

Connection Type

Flanges acc. to DIN PN10/16

Material Body

Gunmetal

Inner Parts

Special brass

Seat Sealing

Metallic

Temperature Range

-10°C to 225°C

  • Bolted bonnet
  • Gland seal
  • Rising stem
  • Loose plug
Art. Nr. DN PN L H ØD kg
01-363-15 DN15 PN16 130 180 95 5.00
01-363-20 DN20 PN16 150 200 105 5.50
01-363-25 DN25 PN16 160 210 115 6.00
01-363-32 DN32 PN16 180 220 140 8.00
01-363-40 DN40 PN16 200 250 150 10.00
01-363-50 DN50 PN16 230 250 165 12.00
01-363-65 DN65 PN16 290 315 185 17.00
01-363-80 DN80 PN16 310 335 200 23.00
01-363-100 DN100 PN16 350 375 220 30.00
01-363-125 DN125 PN16 400 420 250 50.00
01-363-150 DN150 PN10 480 460 285 65.00
01-363-200 DN200 PN10 600 550 340 110.00
01-363-250 DN250 PN06 730 670 395 165.00
01-363-300 DN300 PN06 850 750 445 295.00
