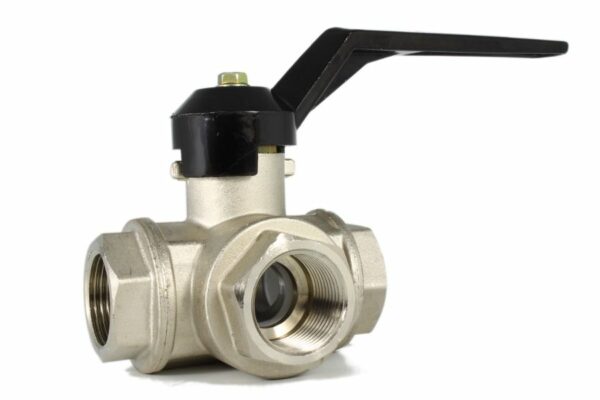

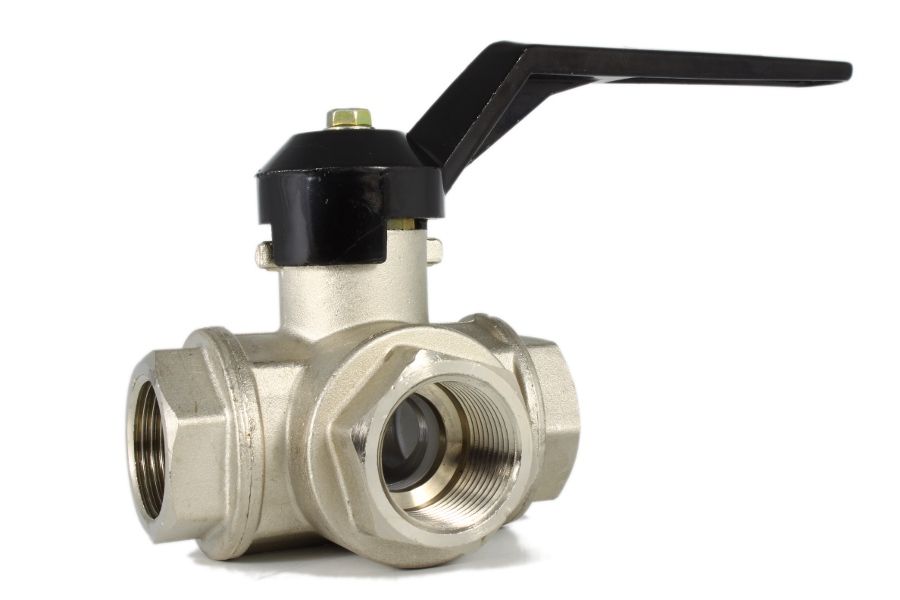

Threaded 3-way Ball Valve, 03-120

SKU: 03-120 Category:

Additional information

Connection Type

Female thread acc. ISO 228/1

Material Body

Brass nickel-plated

Inner Parts

Brass

Seat Sealing

PTFE

Temperature Range

0°C to 80°C

  • Reduced bore
  • Lever
  • Take note of:
    • Art.-no. 03-120 T-port
    • Art.-no. 03-121 L-port
Art. Nr. DN PN kg
03-120-1/4 G1/4 PN16 0.70
03-120-3/8 G3/8 PN16 0.70
03-120-1/2 G1/2 PN16 0.70
03-120-3/4 G3/4 PN16 0.80
03-120-1 G1 PN16 1.50
03-120-11/4 G1-1/4 PN16 2.00
03-120-11/2 G1-1/2 PN16 3.70
03-120-2 G2 PN16 3.70
