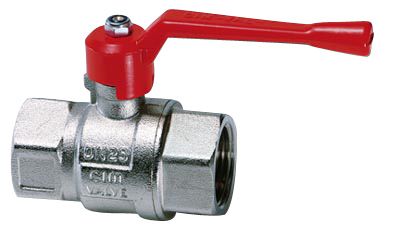

Ball Valve, 03-117-12
Additional information
| Connection Type | Female thread acc. ISO 228/1 |
|---|---|
| Material Body | Brass |
| Inner Parts | Brass chrome plated |
| Seat Sealing | PTFE |
| Temperature Range | 0°C to 120°C |
| Application Range | Cold water, Lubrication oil, Neutral gases, Warm water |
- Full bore
- PTFE ball- and stem-sealing
| Art. Nr. | DN | PN | kg |
| 03-117-12-1/4 | G1/4 | PN40 | 0.20 |
| 03-117-12-3/8 | G3/8 | PN40 | 0.20 |
| 03-117-12-1/2 | G1/2 | PN40 | 0.20 |
| 03-117-12-3/4 | G3/4 | PN40 | 0.40 |
| 03-117-12-1 | G1 | PN40 | 0.60 |
| 03-117-12-11/4 | G1-1/4 | PN40 | 0.90 |
| 03-117-12-11/2 | G1-1/2 | PN40 | 1.40 |
| 03-117-12-2 | G2 | PN40 | 2.20 |
