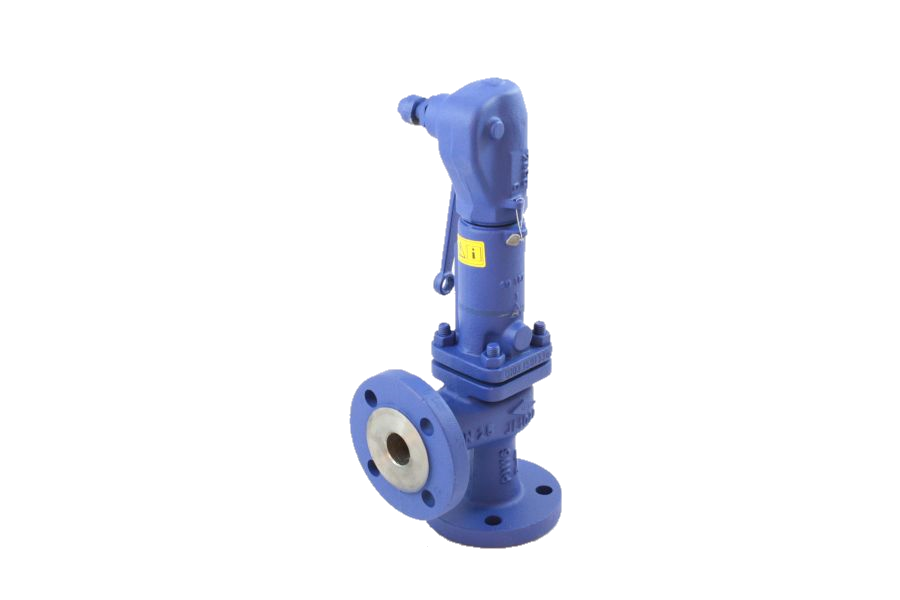

Proportional Safety Valve, Spring Loaded, 05-029GHGA

SKU: 05-029GHGA Category:

Additional information

Connection Type

Flanges acc. to DIN PN40

Material Body

Stainless steel

Inner Parts

Stainless steel

Seat Sealing

Metallic

Temperature Range

-50°C to 400°C

  • Type approval
  • Closed bonnet
  • Lifting device
Art. Nr. DN PN L H ØD kg
05-029GHGA-20 DN20 PN40 95 260 105 5.00
05-029GHGA-25 DN25 PN40 100 270 115 5.50
05-029GHGA-32 DN32 PN40 105 285 140 8.00
05-029GHGA-40 DN40 PN40 115 290 150 9.50
05-029GHGA-50 DN50 PN40 125 290 165 11.50
05-029GHGA-65 DN65 PN40 145 340 185 15.50
05-029GHGA-80 DN80 PN40 155 400 200 20.50
05-029GHGA-100 DN100 PN40 175 450 235 33.00
