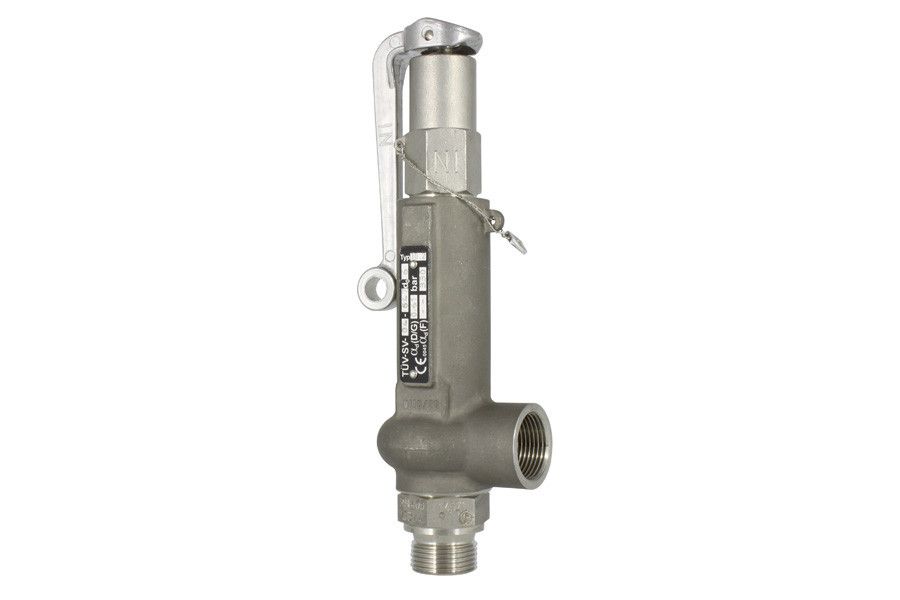

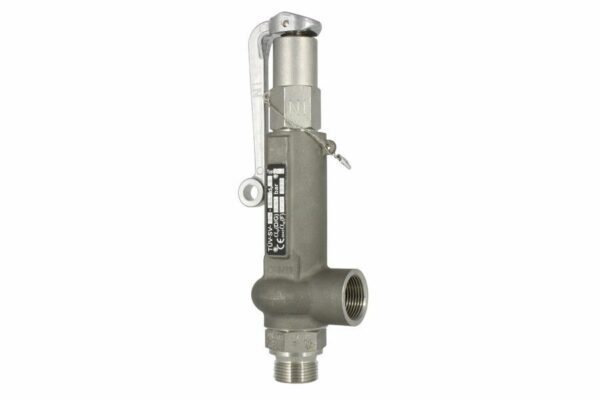

Proportional Safety Valve, Spring Loaded, 05-023.1
SKU:
05-023.1
Category: Proportional Safety Valves
Additional information
Material Body | Stainless steel |
---|---|
Inner Parts | Stainless steel |
Seat Sealing | Metallic |
Temperature Range | -10°C to 280°C |
- Type approval
- Closed bonnet
- Lifting lever
- Set pressure up to 400 bar
Art. Nr. | DN | L | H | kg |
05-023.1-10 | DN10 | 12 | 200 | 1.00 |
05-023.1-15 | DN15 | 14 | 200 | 1.00 |
05-023.1-20-3/4-34 | DN20 | 14 | 200 | 1.00 |
05-023.1-20-3/4-40 | DN20 | 16 | 230 | 1.60 |
05-023.1-25 | DN25 | 18 | 230 | 1.60 |
05-023.1-32 | DN32 | 20 | 230 | 1.60 |
