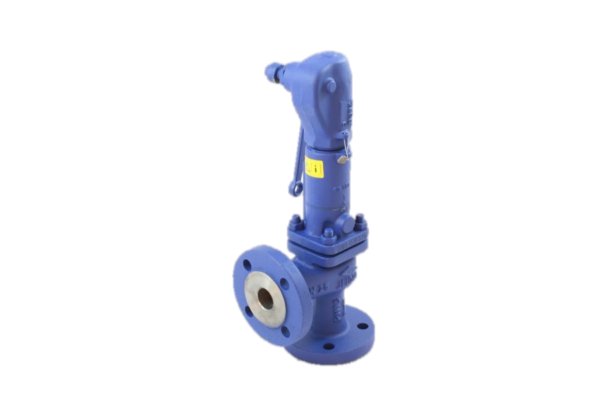

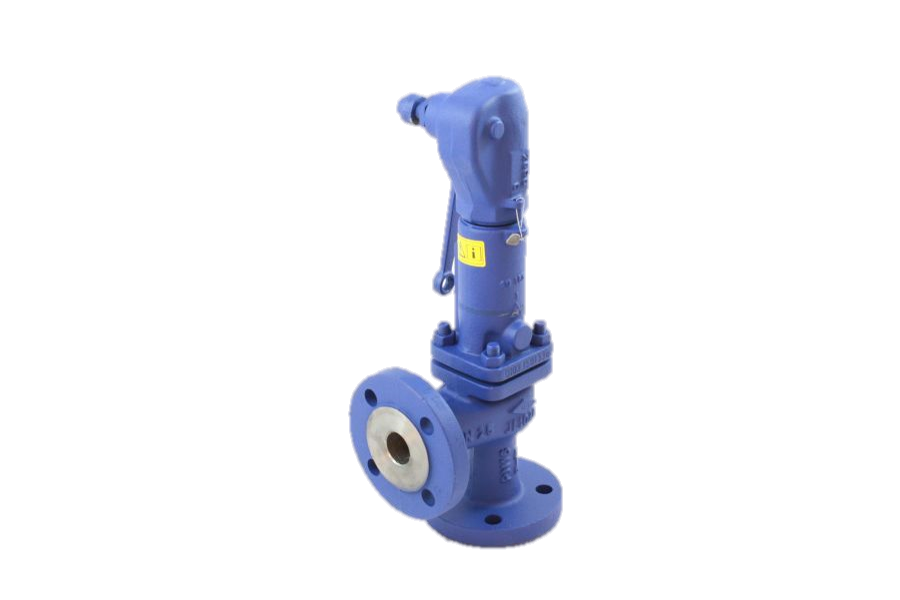

Proportional Safety Valve, Spring Loaded, 05-025GHGA

SKU: 05-025GHGA Category:

Additional information

Connection Type

Flanges acc. to DIN PN16

Material Body

Cast iron

Inner Parts

Stainless steel

Seat Sealing

Metallic

Temperature Range

-10°C to 300°C

  • Type approval
  • Closed bonnet
  • Lifting device
Art. Nr. DN PN L H ØD kg
05-025GHGA-20 DN20 PN16 95 260 105 5.00
05-025GHGA-25 DN25 PN16 100 270 115 5.50
05-025GHGA-32 DN32 PN16 105 285 140 8.00
05-025GHGA-40 DN40 PN16 115 290 150 9.50
05-025GHGA-50 DN50 PN16 125 290 165 11.50
05-025GHGA-65 DN65 PN16 145 340 185 15.50
05-025GHGA-80 DN80 PN16 155 400 200 20.50
05-025GHGA-100 DN100 PN16 175 450 220 33.00
