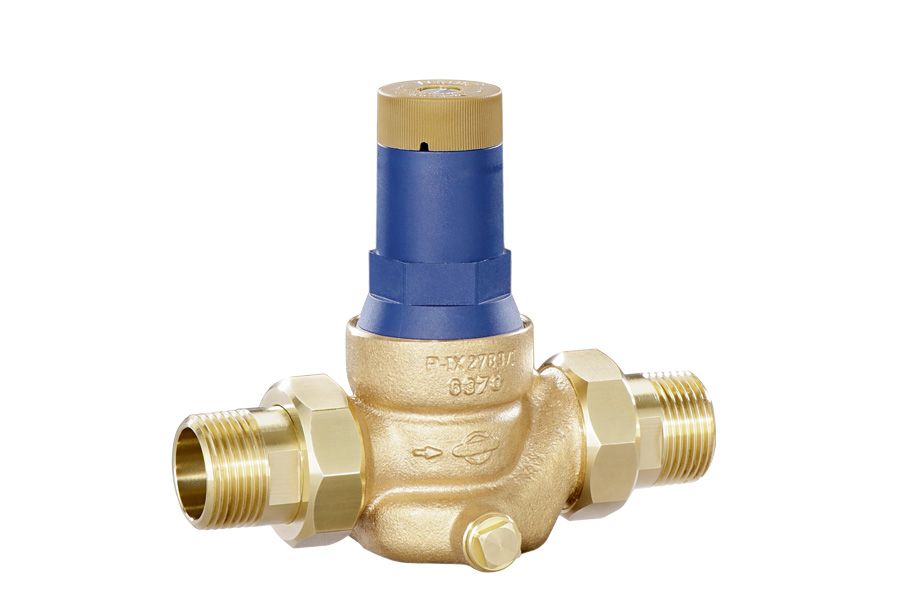

Pressure Reducing Valve for Drinking Water, 05-047-DRV403-6
Additional information
| Connection Type | Male thread acc. to ISO 228/1 |
|---|---|
| Material Body | Brass, Gunmetal |
| Inner Parts | Brass, Stainless steel |
| Seat Sealing | NBR |
| Temperature Range | 0°C to 75°C |
- Balanced single seat valve
- DVGW-approval
- Inlet pressure 25 bar (min. 2,5 bar)
- Outlet pressure 1,5 – 12 bar
| Art. Nr. | DN | PN | L | kg |
| 05-047-DRV403-6-15 | DN15 | PN25 | 137 | 0.75 |
| 05-047-DRV403-6-20 | DN20 | PN25 | 145 | 0.85 |
| 05-047-DRV403-6-25 | DN25 | PN25 | 160 | 1.15 |
| 05-047-DRV403-6-32 | DN32 | PN25 | 178 | 1.50 |
