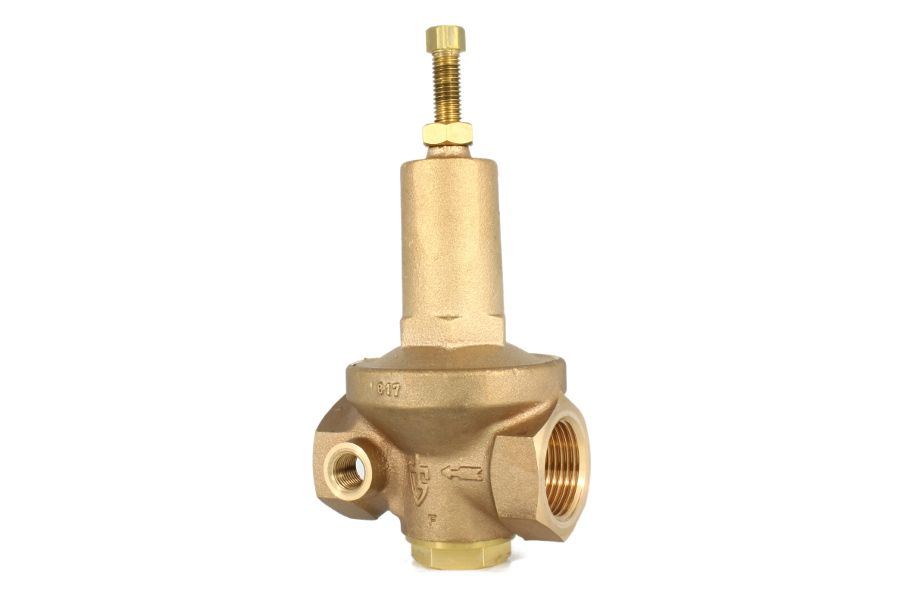

Threaded Pressure Reducing Valve, 05-045
Additional information
| Connection Type | Female thread acc. ISO 228/1 |
|---|---|
| Material Body | Gunmetal |
| Inner Parts | Gunmetal |
| Temperature Range | 0°C to 95°C |
- Pressure-relieved single seat valve
- For neutral gases and liquids
- Both sides pressure connection G1/4
- Inlet pressure R3/8 – R1 <50 bar,
- R11/4 <30 bar
- Outlet pressure 1,5 – 8 bar (10:1)
| Art. Nr. | DN | PN | L | H | kg |
| 05-045-3/8 | G3/8 | PN50 | 73 | 22 | 0.50 |
| 05-045-1/2 | G1/2 | PN50 | 73 | 22 | 0.50 |
| 05-045-3/4 | G3/4 | PN50 | 80 | 30 | 0.75 |
| 05-045-1 | G1 | PN50 | 87 | 35 | 1.40 |
| 05-045-11/4 | G1-1/4 | PN50 | 100 | 43 | 2.00 |
