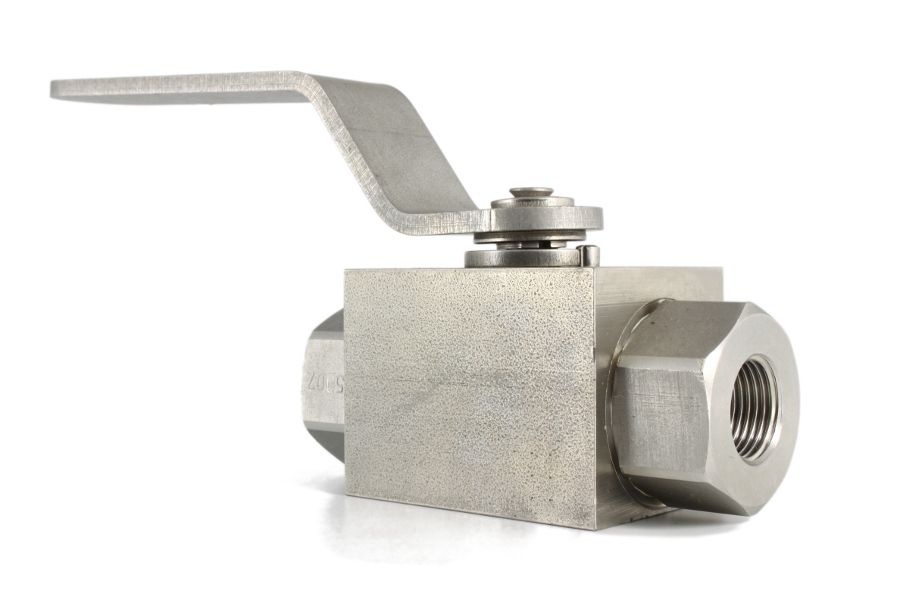

High Pressure Threaded Ball Valve, 03-132
Additional information
| Connection Type | Female thread acc. to ISO 1179-1 |
|---|---|
| Material Body | Stainless steel |
| Inner Parts | Stainless steel |
| Seat Sealing | POM/NBR |
| Temperature Range | -10°C to 80°C |
- Both ends female thread
| Art. Nr. | DN | PN | L | kg |
| 03-132-1/8 | G1/8 | PN315/500 | 69 | 0.42 |
| 03-132-1/4 | G1/4 | PN315/500 | 75 | 0.42 |
| 03-132-3/8 | G3/8 | PN315/500 | 86 | 0.89 |
| 03-132-1/2 | G1/2 | PN315/500 | 92 | 1.09 |
| 03-132-3/4 | G3/4 | PN315/500 | 102 | 1.94 |
| 03-132-1 | G1 | PN315/500 | 116 | 2.20 |
| 03-132-11/4 | G1-1/4 | PN315/500 | 120 | 5.30 |
| 03-132-11/2 | G1-1/2 | PN315/500 | 110 | 7.23 |
| 03-132-2 | G2 | PN315/500 | 140 | 10.30 |
