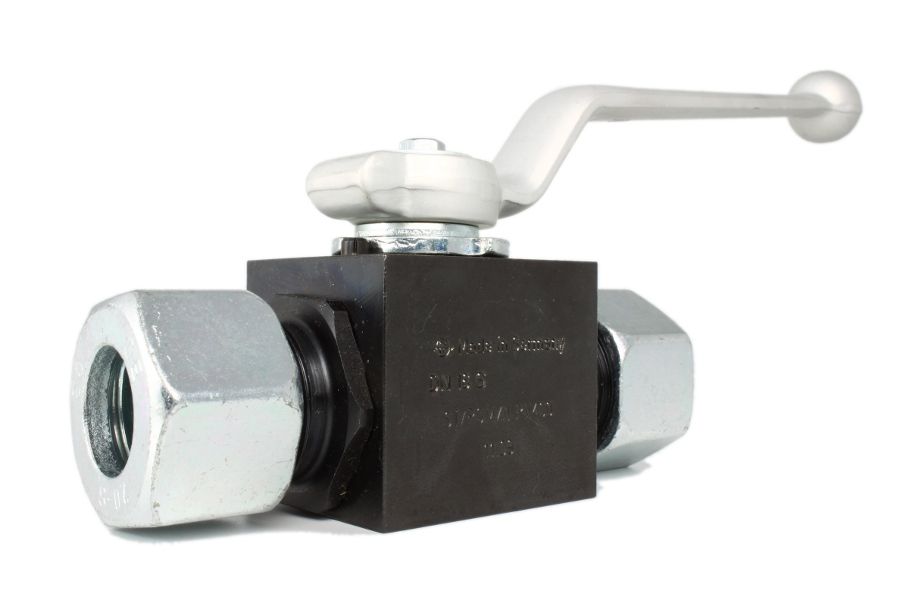

High Pressure Ball Valve, 03-135.1
Additional information
| Material Body | Steel |
|---|---|
| Inner Parts | Steel chrome-plated |
| Seat Sealing | POM/NBR |
| Temperature Range | -10°C to 80°C |
- Both ends cutting ring connections
- Series L
| Art. Nr. | DN | PN | L | kg |
| 03-135.1-4 | DN4 | PN315/500 | 67/82 | 0.19 |
| 03-135.1-6 | DN6 | PN315/500 | 67/82 | 0.19 |
| 03-135.1-8 | DN8 | PN315/500 | 75/90 | 0.42 |
| 03-135.1-10 | DN10 | PN315/500 | 75/90 | 0.41 |
| 03-135.1-12 | DN12 | PN315/500 | 83/99 | 0.63 |
| 03-135.1-16 | DN16 | PN315/500 | 82/99 | 0.85 |
| 03-135.1-20 | DN20 | PN315/500 | 99/116 | 1.21 |
| 03-135.1-25 | DN25 | PN315/500 | 108/126 | 17.50 |
| 03-135.1-32 | DN32 | PN315/500 | 121/143 | 3.16 |
| 03-135.1-40 | DN40 | PN315/500 | 118/141 | 3.79 |
