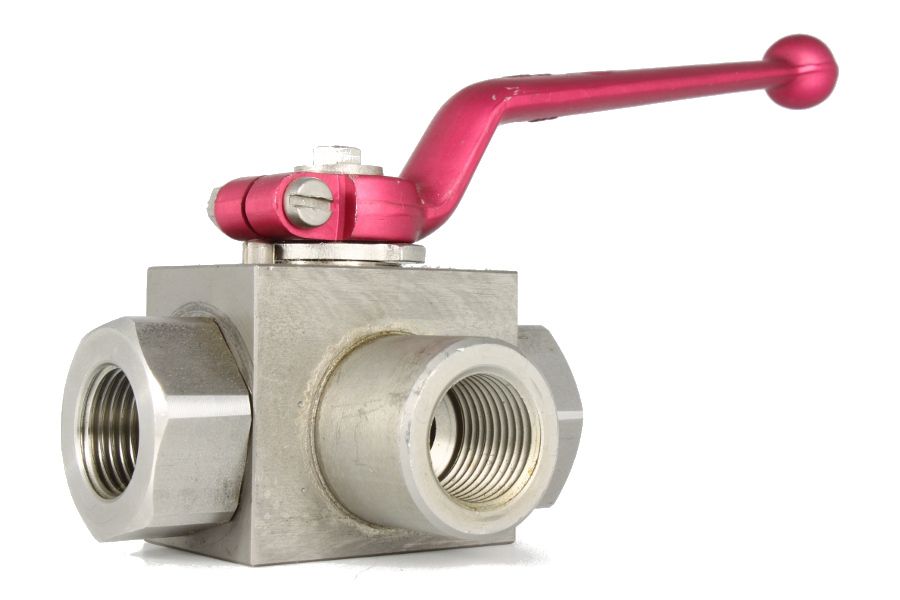

High Pressure 3-Way Threaded Ball Valve, 03-141.1

SKU: 03-141.1 Category:

Additional information

Connection Type

Female thread acc. to ISO 1179-1

Material Body

Stainless steel

Inner Parts

Stainless steel

Seat Sealing

POM/NBR

Temperature Range

-10°C to 80°C

  • Floating ball
  • Negative overlap
  • L-port
  • Shut-off for 45° switching path not possible!
Art. Nr. DN PN L kg
03-141.1-1/8 G1/8 PN400/500 69 0.27
03-141.1-1/4 G1/4 PN400/500 69 0.34
03-141.1-3/8 G3/8 PN400/500 73 0.56
03-141.1-1/2 G1/2 PN400/500 82 0.93
03-141.1-3/4 G3/4 PN400/500 93 1.72
03-141.1-1 G1 PN400/500 118 2.64
03-141.1-11/4 G1-1/4 PN400/500 134 2.71
03-141.1-11/2 G1-1/2 PN400/500 139 2.91
