Gestra Non-return Valve, MB14

Additional information

Material Body

Hot-pressed brass

Inner Parts

Chromium steel, Stainless steel

Seat Sealing

Metal to metal

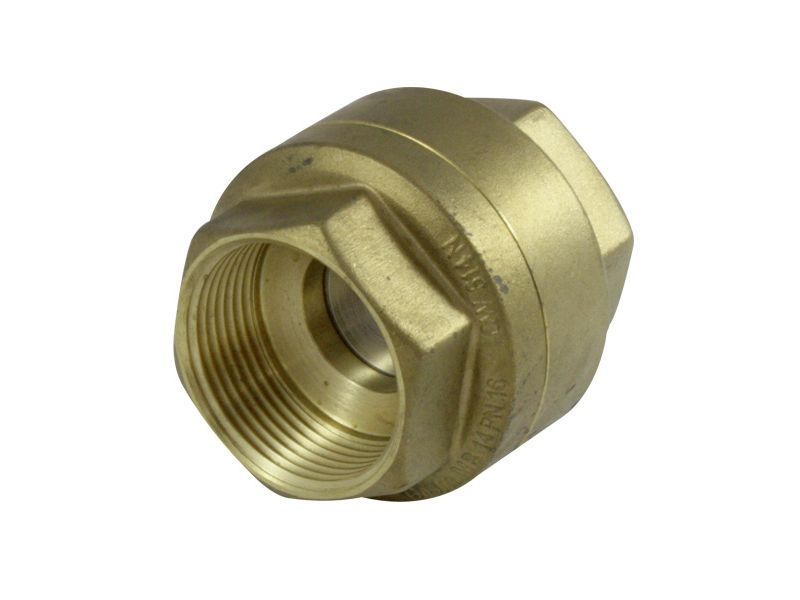

GESTRA Non-return valve MB 14 with screwed end connection.

  • Installation in any position
  • Opening pressure: approx. 20 mbar

Nominal size:
G ½“, G ¾“, G 1“, G 1 ¼“, G 1 ½“ G 2“

Pressure rating:
PN 16

End connections:
pipe thread ISO 228/1

Body: hot-pressed brass CW 614 N
Disc, Spring: Stainless steel 1.4571
Guiding: Chromium steel 1.4301

Sealing: Metal to metal
