Gestra Non-return Valve, CB26A

Additional information

Material Body

Stainless steel

Inner Parts

Stainless steel

Seat Sealing

EPDM, FPM, PTFE, Soft sealing

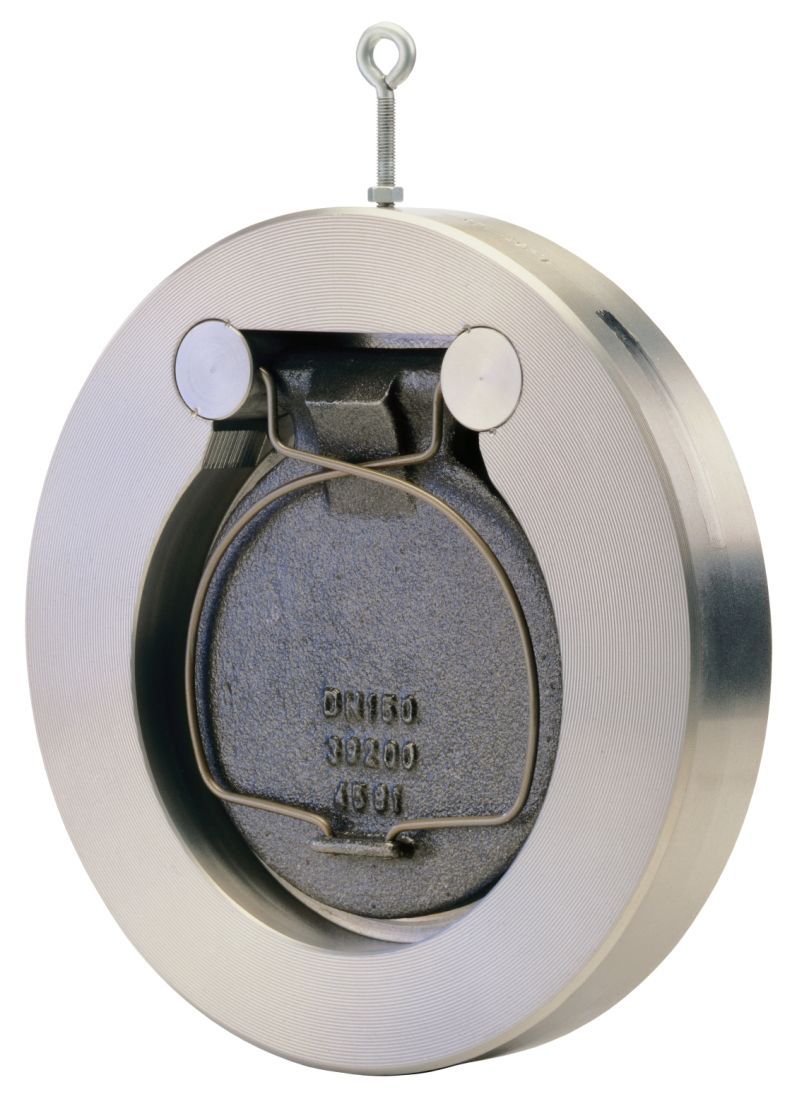

GESTRA Non-return valve CB 26A with short overall length.

  • Installation in horizontal pipes or rather in vertical pipes with upward flow
  • Body – Centering directly on the body
  • Opening pressure: approx. 7 mbar

Nominal size:
DN 50 – DN 300

Pressure rating:
PN 6, PN 10, PN 16, PN 25, PN 40
ASME CL 150RF, CL 300RF, CL 125FF

End connections:

DN 50 – DN 250
Body: Stainless steel 1.4571
Flap: Stainless steel 1.4581

DN 300:
Body: Stainless steel 1.4581
Flap: Stainless steel 1.4581

Standard: Soft sealing EPDM

Optional: Soft sealing FPM, PTFE or metal to metal
