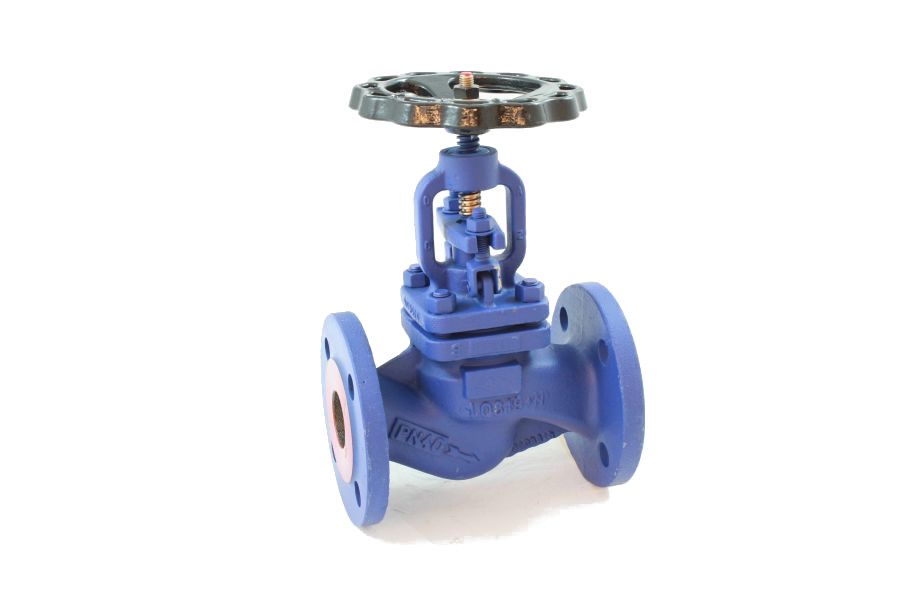

Flanged Globe Valve, 01-411
Additional information
| Connection Type | Flanges acc. to DIN PN40 |
|---|---|
| Material Body | Cast steel |
| Inner Parts | Gunmetal |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 225°C |
- Bolted bonnet
- Gland seal
- Rising stem
- Fix plug
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-411-15 | DN15 | PN40 | 130 | 189 | 95 | 4.80 |
| 01-411-20 | DN20 | PN40 | 150 | 189 | 105 | 5.40 |
| 01-411-25 | DN25 | PN40 | 160 | 203 | 115 | 7.10 |
| 01-411-32 | DN32 | PN40 | 180 | 203 | 140 | 8.00 |
| 01-411-40 | DN40 | PN40 | 200 | 246 | 150 | 11.50 |
| 01-411-50 | DN50 | PN40 | 230 | 254 | 165 | 13.50 |
| 01-411-65 | DN65 | PN40 | 290 | 293 | 185 | 23.50 |
| 01-411-80 | DN80 | PN40 | 310 | 322 | 200 | 28.00 |
| 01-411-100 | DN100 | PN40 | 350 | 381 | 235 | 39.50 |
| 01-411-125 | DN125 | PN40 | 400 | 427 | 270 | 61.00 |
| 01-411-150 | DN150 | PN40 | 480 | 521 | 300 | 84.00 |
| 01-411-200 | DN200 | PN40 | 600 | 643 | 375 | 170.00 |
| 01-411-250 | DN250 | PN40 | 730 | 780 | 450 | 283.00 |
| 01-411-300 | DN300 | PN40 | 850 | 890 | 515 | 414.00 |
