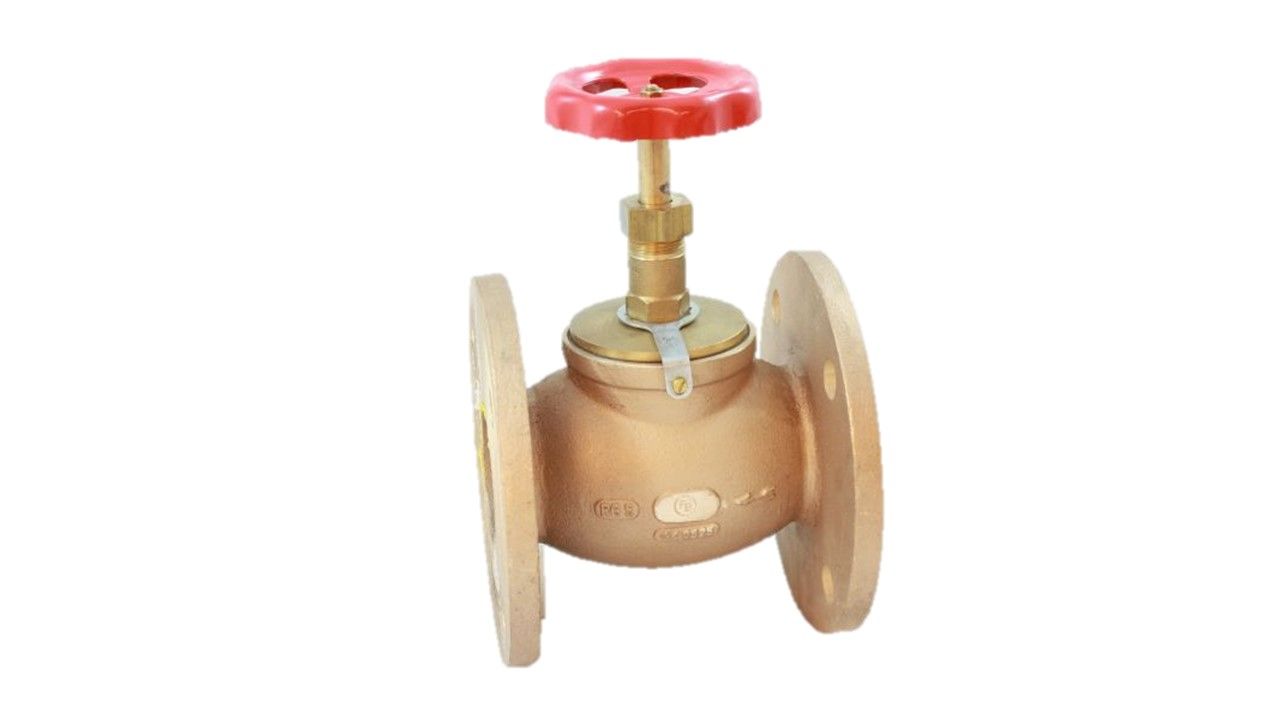

Flanged Globe Valve, 01-340BGV
Additional information
| Connection Type | Flanges acc. to DIN PN10/16 |
|---|---|
| Material Body | Gunmetal |
| Inner Parts | Special brass |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 225°C |
- Screwed and secured bonnet
- Rising stem
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-340BGV-10 | DN10 | PN16 | 70 | 95 | 90 | 1.40 |
| 01-340BGV-15 | DN15 | PN16 | 70 | 95 | 95 | 1.80 |
| 01-340BGV-20 | DN20 | PN16 | 80 | 110 | 105 | 2.10 |
| 01-340BGV-25 | DN25 | PN16 | 90 | 115 | 115 | 2.60 |
| 01-340BGV-32 | DN32 | PN16 | 105 | 135 | 140 | 4.20 |
| 01-340BGV-40 | DN40 | PN16 | 120 | 145 | 150 | 5.20 |
| 01-340BGV-50 | DN50 | PN16 | 140 | 165 | 165 | 7.50 |
| 01-340BGV-65 | DN65 | PN16 | 180 | 230 | 185 | 11.00 |
| 01-340BGV-80 | DN80 | PN16 | 200 | 250 | 200 | 14.50 |
| 01-340BGV-100 | DN100 | PN16 | 230 | 260 | 220 | 21.00 |
