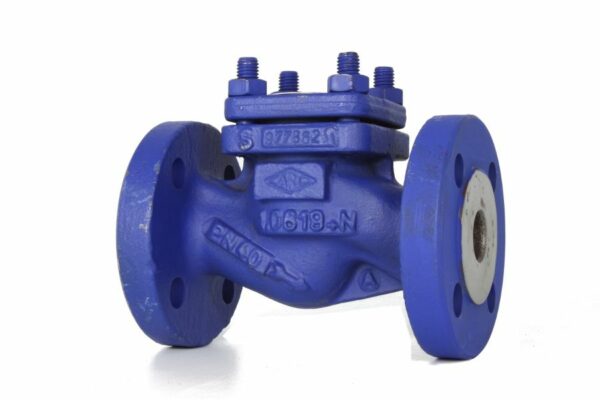

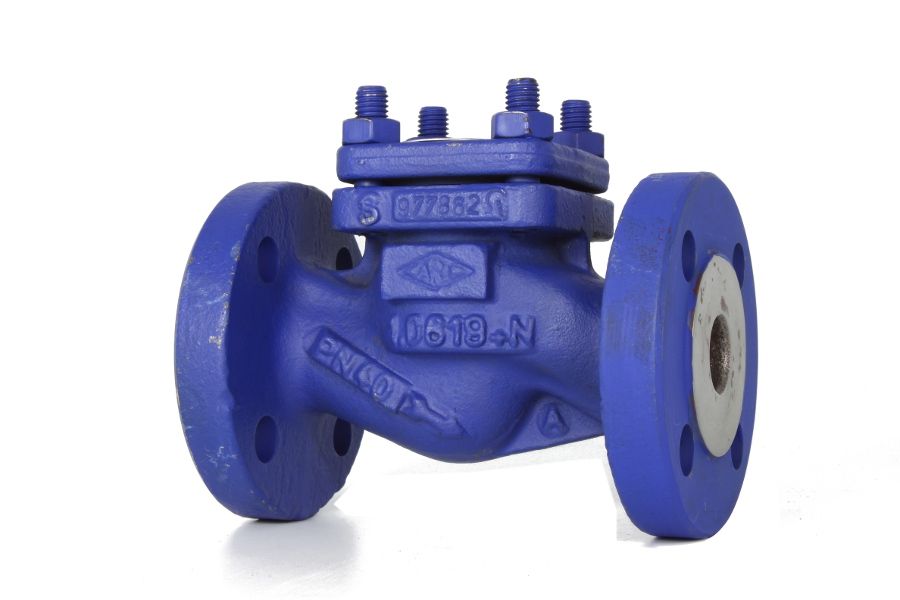

Flanged Check Valve, 01-709
Additional information
| Connection Type | Flanges acc. to DIN PN40 |
|---|---|
| Material Body | Cast steel |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -20°C to 450°C |
- Spring loaded
- Horizontal or vertical installation
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-709-15 | DN15 | PN40 | 130 | 70 | 95 | 3.80 |
| 01-709-20 | DN20 | PN40 | 150 | 70 | 105 | 4.90 |
| 01-709-25 | DN25 | PN40 | 160 | 80 | 115 | 5.90 |
| 01-709-32 | DN32 | PN40 | 180 | 80 | 140 | 7.10 |
| 01-709-40 | DN40 | PN40 | 200 | 85 | 150 | 10.40 |
| 01-709-50 | DN50 | PN40 | 230 | 95 | 165 | 12.30 |
| 01-709-65 | DN65 | PN40 | 290 | 110 | 185 | 22.70 |
| 01-709-80 | DN80 | PN40 | 310 | 130 | 200 | 28.50 |
| 01-709-100 | DN100 | PN40 | 350 | 155 | 235 | 40.00 |
| 01-709-125 | DN125 | PN40 | 400 | 165 | 270 | 64.00 |
| 01-709-150 | DN150 | PN40 | 480 | 215 | 300 | 90.00 |
| 01-709-200 | DN200 | PN40 | 600 | 285 | 375 | 170.00 |
| 01-709-250 | DN250 | PN40 | 730 | 325 | 450 | 240.00 |
| 01-709-300 | DN300 | PN40 | 850 | 365 | 515 | 374.00 |
