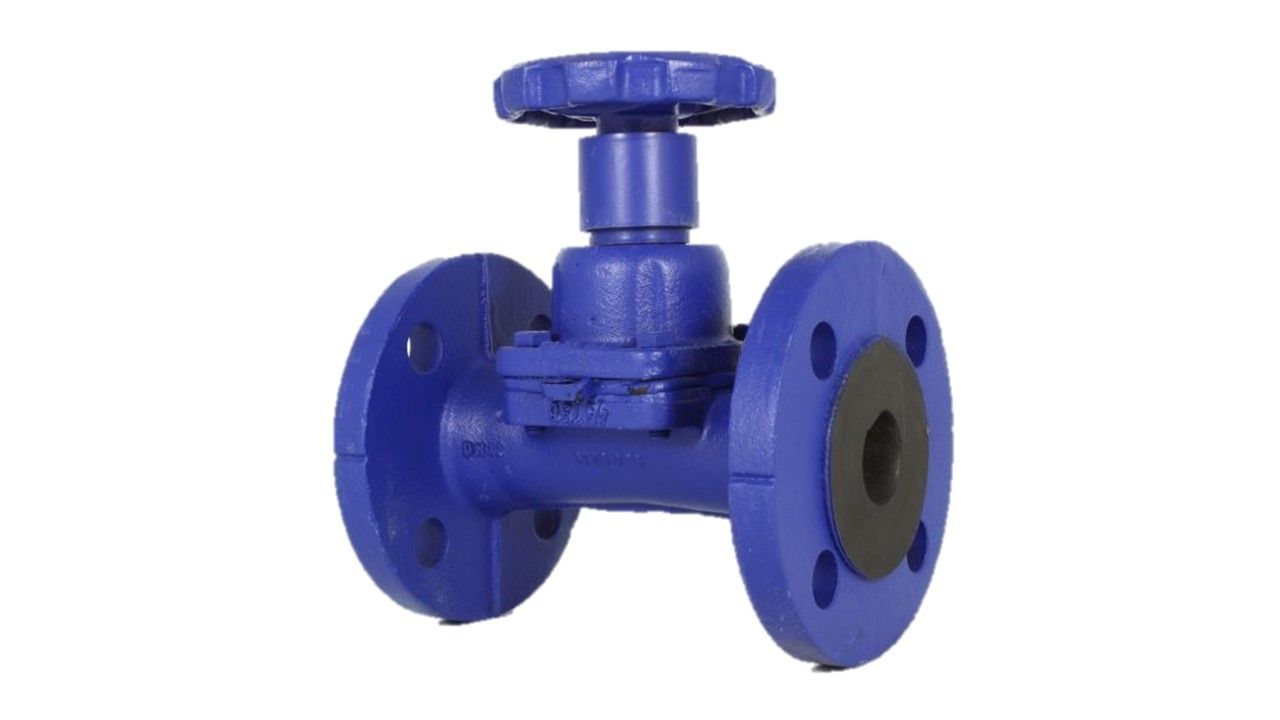

Flanged Diaphragm Valve Typ KB, 01-482

SKU: 01-482 Category:

Additional information

Connection Type

Flanges acc. to DIN PN10/16

Material Body

Nodular cast iron

Inner Parts

Stainless steel

Seat Sealing

EPDM

Temperature Range

-10°C to 140°C

  • Full bore
  • Without gland
  • Rising stem
Art. Nr. DN PN L H ØD kg
01-482-15 DN15 PN10 130 93 95 2.00
01-482-20 DN20 PN10 150 93 105 3.50
01-482-25 DN25 PN10 160 155 115 4.00
01-482-32 DN32 PN10 180 155 140 6.50
01-482-40 DN40 PN10 200 155 150 7.00
01-482-50 DN50 PN10 230 220 165 10.30
01-482-65 DN65 PN10 290 280 185 16.00
01-482-80 DN80 PN10 310 320 200 20.00
01-482-100 DN100 PN10 350 370 220 26.50
01-482-125 DN125 PN10 400 360 250 55.00
01-482-150 DN150 PN10 480 440 285 75.00
01-482-200 DN200 PN10 600 560 340 125.00
