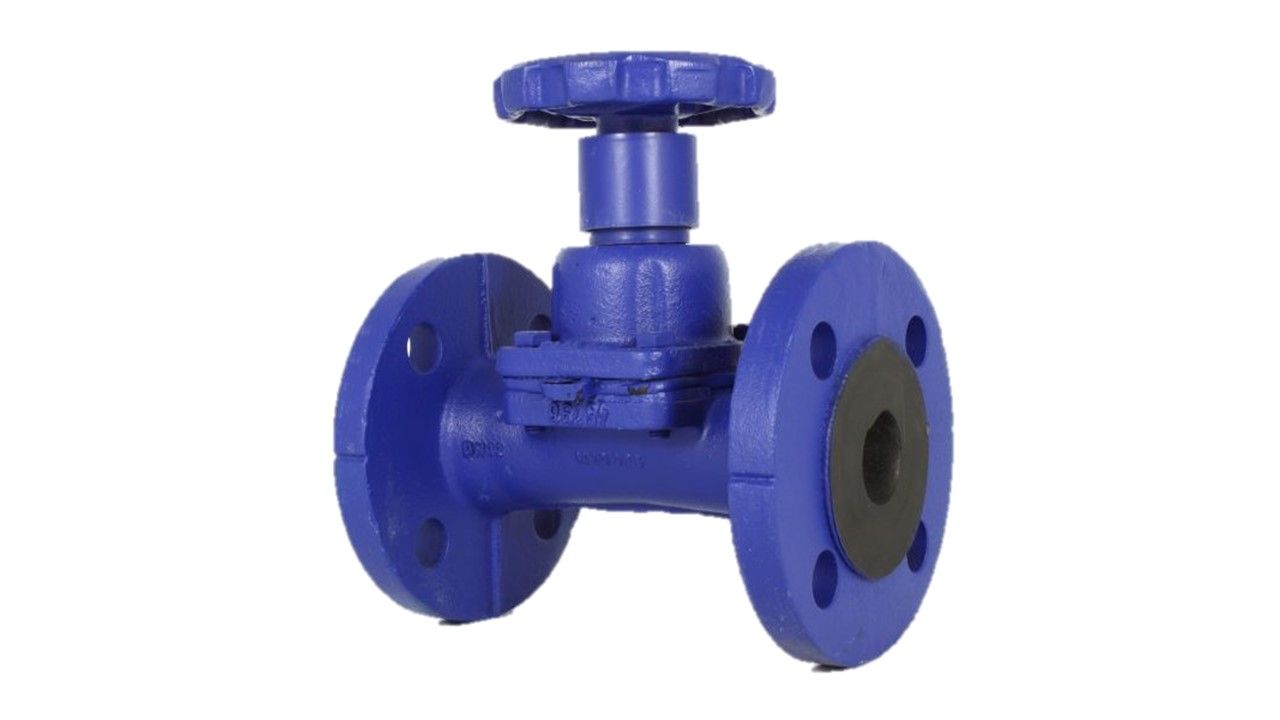

Flanged Diaphragm Valve Typ KB, 01-480
SKU:
01-480
Category: Diaphragm Valves
Additional information
Connection Type | Flanges acc. to DIN PN10/16 |
---|---|
Material Body | Cast iron |
Inner Parts | Stainless steel |
Seat Sealing | EPDM |
Temperature Range | -10°C to 140°C |
- Full bore
- Without gland
- Rising stem
Art. Nr. | DN | PN | L | H | ØD | kg |
01-480-15 | DN15 | PN10 | 130 | 93 | 95 | 2.00 |
01-480-20 | DN20 | PN10 | 150 | 93 | 105 | 3.50 |
01-480-25 | DN25 | PN10 | 160 | 155 | 115 | 4.00 |
01-480-32 | DN32 | PN10 | 180 | 155 | 140 | 6.50 |
01-480-40 | DN40 | PN10 | 200 | 155 | 150 | 7.00 |
01-480-50 | DN50 | PN10 | 230 | 220 | 165 | 10.30 |
01-480-65 | DN65 | PN10 | 290 | 280 | 185 | 16.00 |
01-480-80 | DN80 | PN10 | 310 | 320 | 200 | 20.00 |
01-480-100 | DN100 | PN10 | 350 | 370 | 220 | 26.50 |
01-480-125 | DN125 | PN10 | 400 | 360 | 250 | 55.00 |
01-480-150 | DN150 | PN10 | 480 | 440 | 285 | 75.00 |
01-480-200 | DN200 | PN10 | 600 | 560 | 340 | 125.00 |
