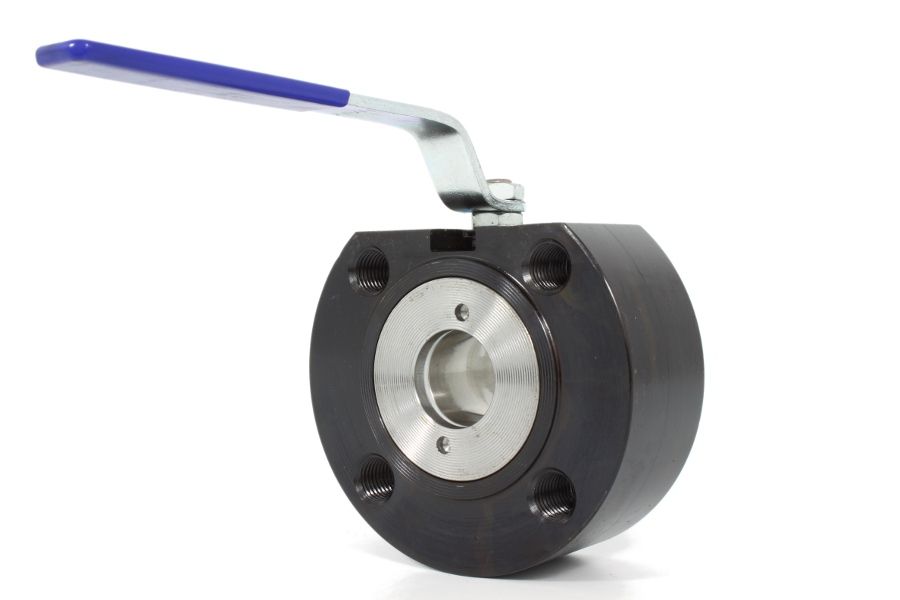

Flanged Compact Ball Valve, 03-311
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN10/16 |
|---|---|
| Material Body | Steel |
| Inner Parts | Stainless steel |
| Seat Sealing | PTFE |
| Temperature Range | -20°C to 160°C |
- Full bore
- Top flange acc. to ISO 5211
- Tapped holes
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 03-311-15 | DN15 | PN16 | 35 | 64,5 | 90 | 1.30 |
| 03-311-20 | DN20 | PN16 | 40 | 69 | 100 | 1.90 |
| 03-311-25 | DN25 | PN16 | 46 | 80,5 | 110 | 2.70 |
| 03-311-32 | DN32 | PN16 | 54 | 84,5 | 130 | 4.20 |
| 03-311-40 | DN40 | PN16 | 63,5 | 102,5 | 140 | 5.90 |
| 03-311-50 | DN50 | PN16 | 82 | 111 | 150 | 8.70 |
| 03-311-65 | DN65 | PN16 | 103 | 128 | 175 | 15.50 |
| 03-311-80 | DN80 | PN16 | 122 | 138,5 | 190 | 20.50 |
| 03-311-100 | DN100 | PN16 | 152 | 156,5 | 220 | 34.20 |
| 03-311-125 | DN125 | PN16 | 196 | 178,5 | 250 | 52.50 |
| 03-311-150 | DN150 | PN16 | 232 | 237 | 300 | 92.00 |
| 03-311-200 | DN200 | PN16 | 317 | 280 | 340 | 94.00 |
