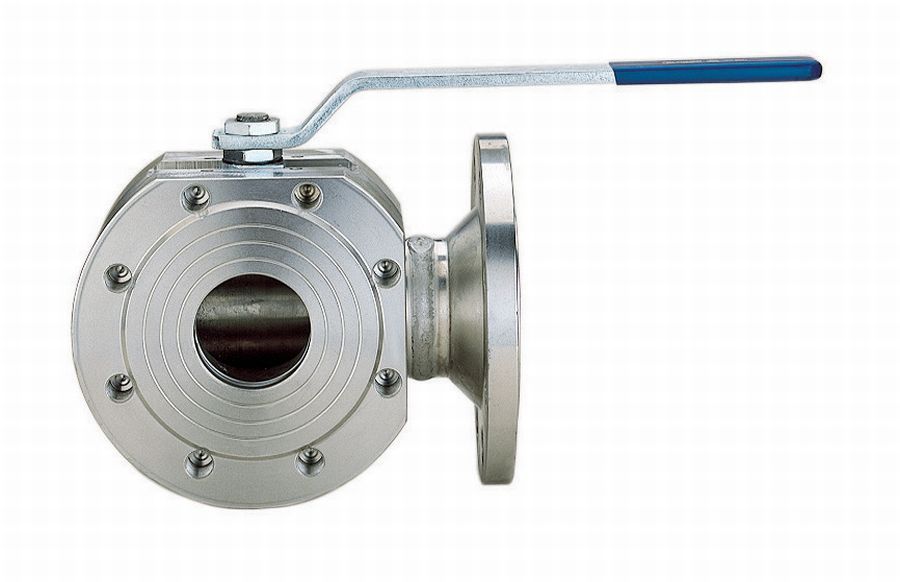

Flanged 3-way Compact Ball Valve, 03-812
SKU:
03-812
Category: Flanged Ball Valves
Additional information
Connection Type | Flanges acc. to DIN EN 1092 PN16, Top flange acc. to ISO 5211 |
---|---|
Material Body | Stainless steel |
Inner Parts | Stainless steel |
Seat Sealing | PTFE |
Temperature Range | -20°C to 200°C |
- Reduced bore
- L-port
Art. Nr. | DN | PN | L | H | ØD | kg |
03-812-15 | DN15 | PN16 | 40 | 47 | 95 | 2.23 |
03-812-20 | DN20 | PN16 | 40 | 49,5 | 105 | 2.86 |
03-812-25 | DN25 | PN16 | 46 | 59 | 115 | 3.89 |
03-812-32 | DN32 | PN16 | 58 | 64 | 140 | 6.21 |
03-812-40 | DN40 | PN16 | 71 | 78 | 150 | 8.50 |
03-812-50 | DN50 | PN16 | 82 | 85 | 165 | 12.27 |
03-812-65 | DN65 | PN16 | 106 | 104,5 | 185 | 19.10 |
03-812-80 | DN80 | PN16 | 122 | 113 | 200 | 24.34 |
03-812-100 | DN100 | PN16 | 152 | 136 | 220 | 38.45 |
