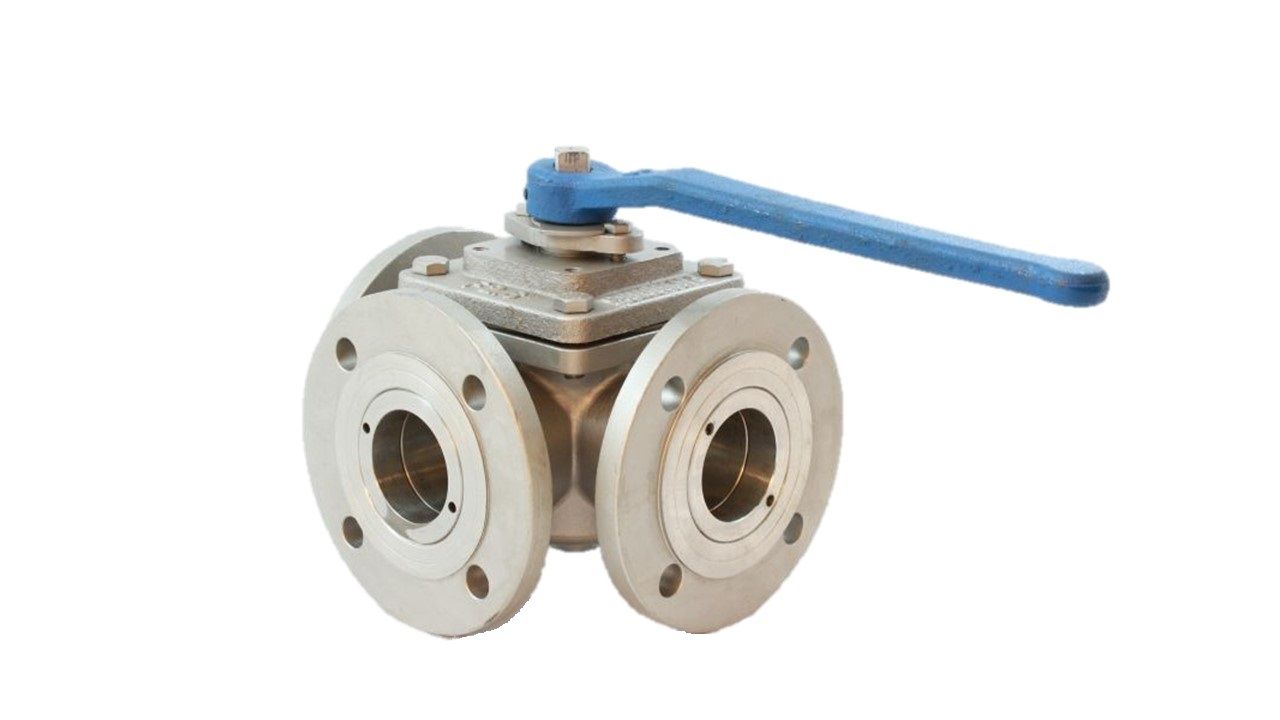

Flanged 3-way Ball Valve, 03-740
SKU:
03-740
Category: Flanged Ball Valves
Additional information
Connection Type | Flanges acc. to DIN PN16 |
---|---|
Material Body | Stainless steel |
Inner Parts | Stainless steel |
Seat Sealing | PTFE |
Temperature Range | -10°C to 180°C |
- L-port
Art. Nr. | DN | PN | L | H | ØD | kg |
03-740-25 | DN25 | PN16 | 180 | 103 | 125 | 9.50 |
03-740-40 | DN40 | PN16 | 190 | 133 | 150 | 13.00 |
03-740-50 | DN50 | PN16 | 220 | 136 | 165 | 17.00 |
03-740-65 | DN65 | PN16 | 250 | 146 | 185 | 27.00 |
03-740-80 | DN80 | PN16 | 260 | 156 | 200 | 29.00 |
03-740-100 | DN100 | PN16 | 340 | 172 | 220 | 45.00 |
