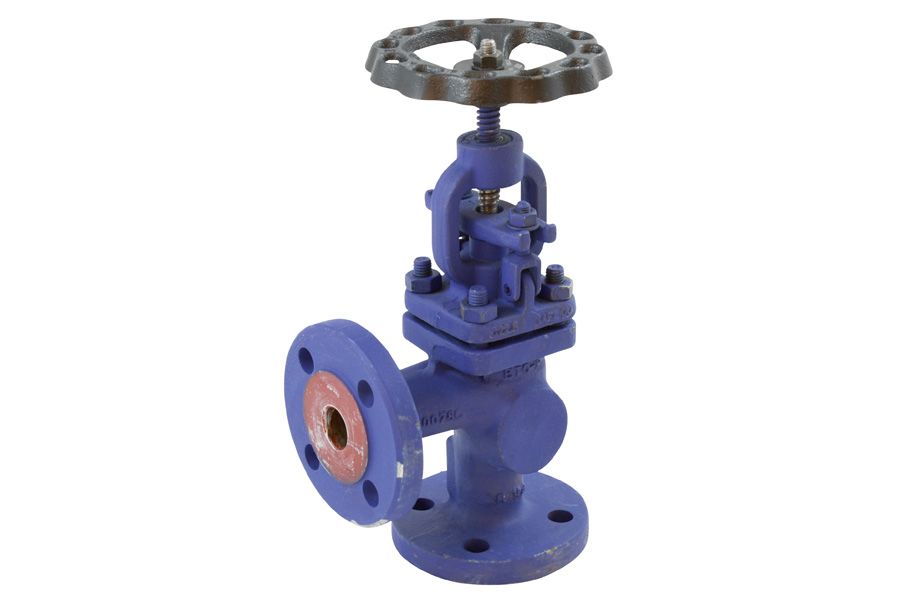

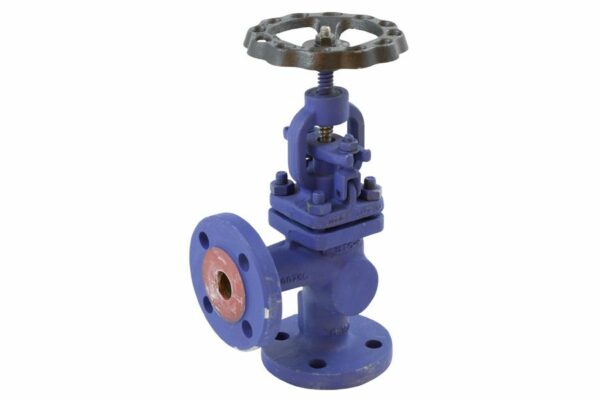

Flange SDNR-Valve, 01-423

SKU: 01-423 Category:

Additional information

Connection Type

Flanges acc. to DIN PN40

Material Body

Cast steel

Inner Parts

Stainless steel

Seat Sealing

Metallic

Temperature Range

-20°C to 450°C

  • Bolted bonnet
  • Gland seal
  • Rising stem
  • Loose plug/spring
Art. Nr. DN PN L H ØD kg
01-423-15 DN15 PN40 90 159 95 4.80
01-423-20 DN20 PN40 95 159 105 5.40
01-423-25 DN25 PN40 100 178 115 7.10
01-423-32 DN32 PN40 105 178 140 8.00
01-423-40 DN40 PN40 115 221 150 11.50
01-423-50 DN50 PN40 125 229 165 13.50
01-423-65 DN65 PN40 145 253 185 23.50
01-423-80 DN80 PN40 155 297 200 28.00
01-423-100 DN100 PN40 175 336 235 39.50
01-423-125 DN125 PN40 200 387 270 61.00
01-423-150 DN150 PN40 225 466 300 84.00
01-423-200 DN200 PN40 275 588 375 170.00
01-423-250 DN250 PN40 325 690 450 283.00
01-423-300 DN300 PN40 375 785 515 414.00
