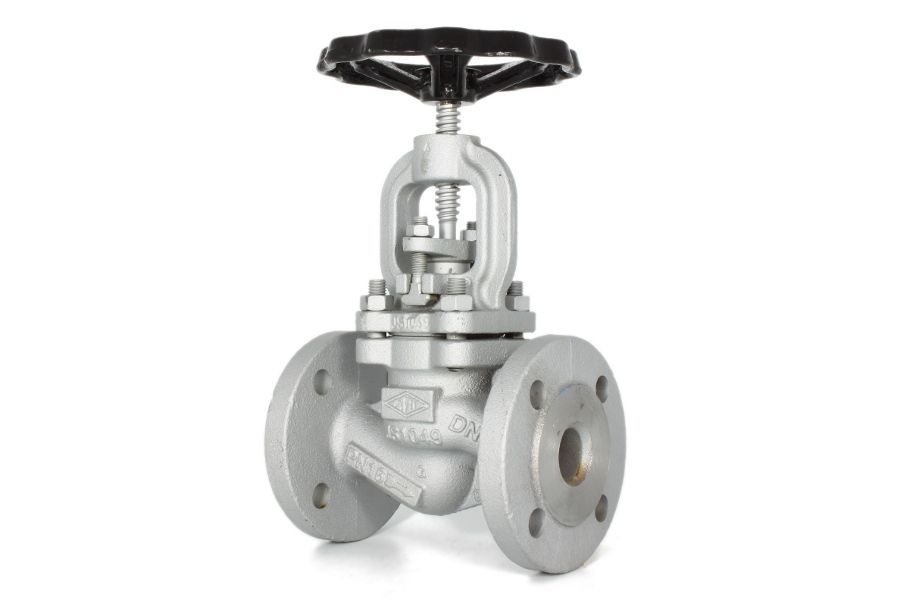

Flange SDNR-Valve, 01-396PN06
Additional information
| Connection Type | Flanges acc. DIN PN06 |
|---|---|
| Material Body | Nodular cast iron |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 225°C |
- Bolted bonnet
- Gland seal
- Rising stem
- Loose plug/spring
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-396PN06-15 | DN15 | PN6 | 130 | 185 | 80 | 3.90 |
| 01-396PN06-20 | DN20 | PN6 | 150 | 185 | 90 | 4.30 |
| 01-396PN06-25 | DN25 | PN6 | 160 | 205 | 100 | 5.40 |
| 01-396PN06-32 | DN32 | PN6 | 180 | 205 | 120 | 7.00 |
| 01-396PN06-40 | DN40 | PN6 | 200 | 230 | 130 | 9.50 |
| 01-396PN06-50 | DN50 | PN6 | 230 | 230 | 140 | 12.90 |
| 01-396PN06-65 | DN65 | PN6 | 290 | 270 | 160 | 18.40 |
| 01-396PN06-80 | DN80 | PN6 | 310 | 305 | 190 | 24.50 |
| 01-396PN06-100 | DN100 | PN6 | 350 | 355 | 210 | 36.00 |
| 01-396PN06-125 | DN125 | PN6 | 400 | 395 | 240 | 56.00 |
| 01-396PN06-150 | DN150 | PN6 | 480 | 450 | 265 | 78.00 |
| 01-396PN06-200 | DN200 | PN6 | 600 | 570 | 320 | 122.00 |
