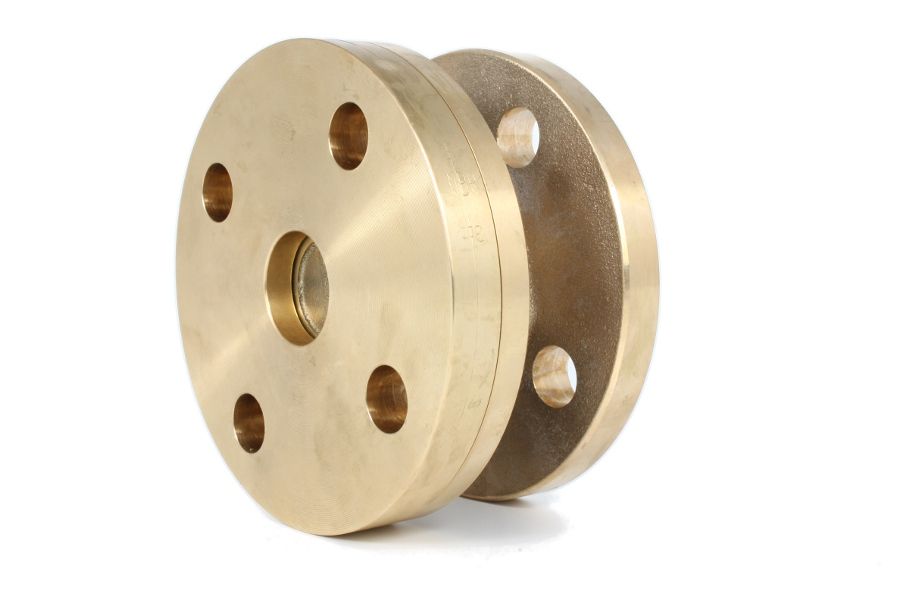

Flange non-return swing valve short type, 04-008N
Additional information
| Material Body | Zincfree bronze |
|---|---|
| Inner Parts | Aluminium bronze |
| Seat Sealing | NBR |
| Temperature Range | -40°C to 90°C |
- Full bore
- Soft sealing
- Low pressure loss
| Art. Nr. | DN | PN | L | ØD | kg |
| 04-008N-15 | DN15 | PN16 | 65 | 95 | 2.10 |
| 04-008N-20 | DN20 | PN16 | 65 | 105 | 2.50 |
| 04-008N-25 | DN25 | PN16 | 70 | 115 | 3.00 |
| 04-008N-32 | DN32 | PN16 | 75 | 140 | 5.00 |
| 04-008N-40 | DN40 | PN16 | 80 | 150 | 6.00 |
| 04-008N-50 | DN50 | PN16 | 85 | 165 | 7.00 |
| 04-008N-65 | DN65 | PN16 | 105 | 185 | 9.00 |
| 04-008N-80 | DN80 | PN16 | 125 | 200 | 11.00 |
| 04-008N-100 | DN100 | PN16 | 145 | 220 | 16.00 |
| 04-008N-125 | DN125 | PN16 | 170 | 250 | 21.00 |
| 04-008N-150 | DN150 | PN16 | 200 | 285 | 29.00 |
| 04-008N-200 | DN200 | PN10 | 255 | 340 | 44.00 |
| 04-008N-250 | DN250 | PN10 | 310 | 395 | 64.00 |
| 04-008N-300 | DN300 | PN10 | 360 | 445 | 79.00 |
